Winding Resistance Test of Transformer
10 A Transformer Resistance Tester for Weshine® Winding Resistance Test of Transformer with CE certificate, high quality and accrucy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Winding Resistance Test of Transformer from Weshine!
Send Inquiry PDF DownLoad
Product Description

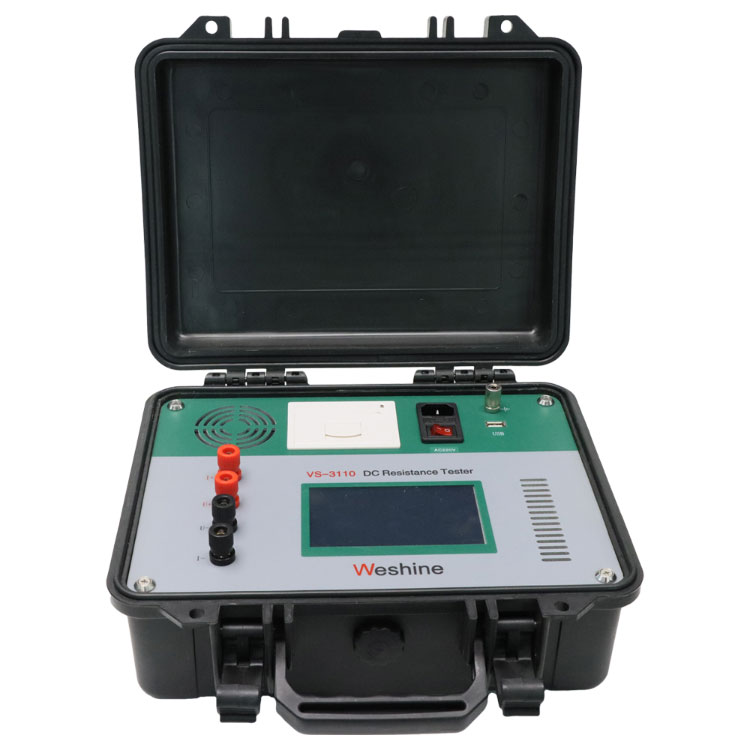

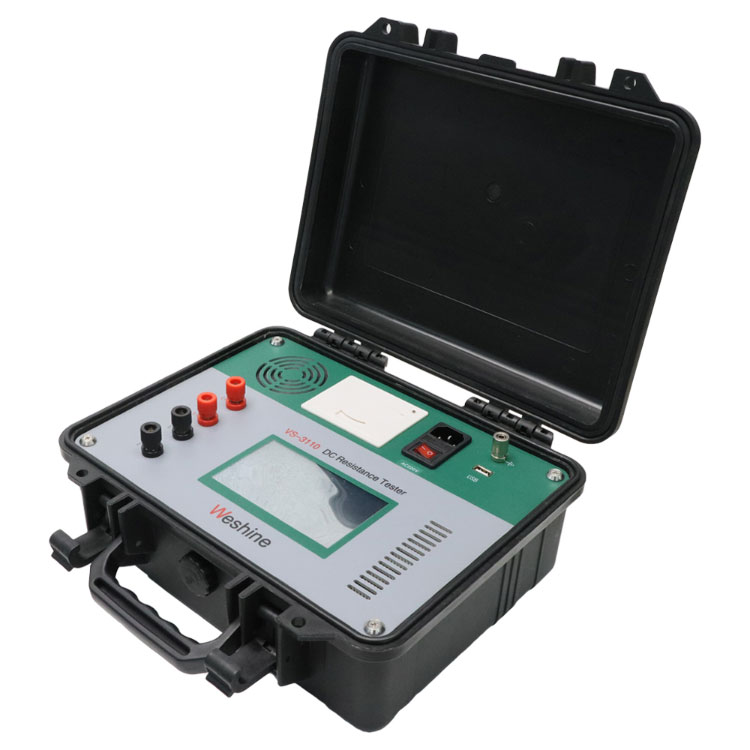

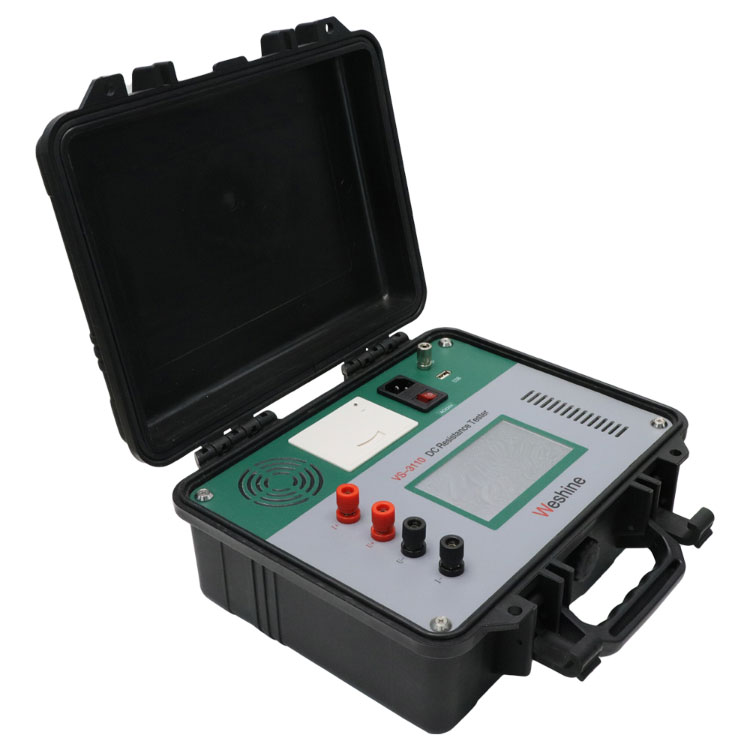

10 A Transformer Resistance Tester for Winding Resistance Test of Transformer

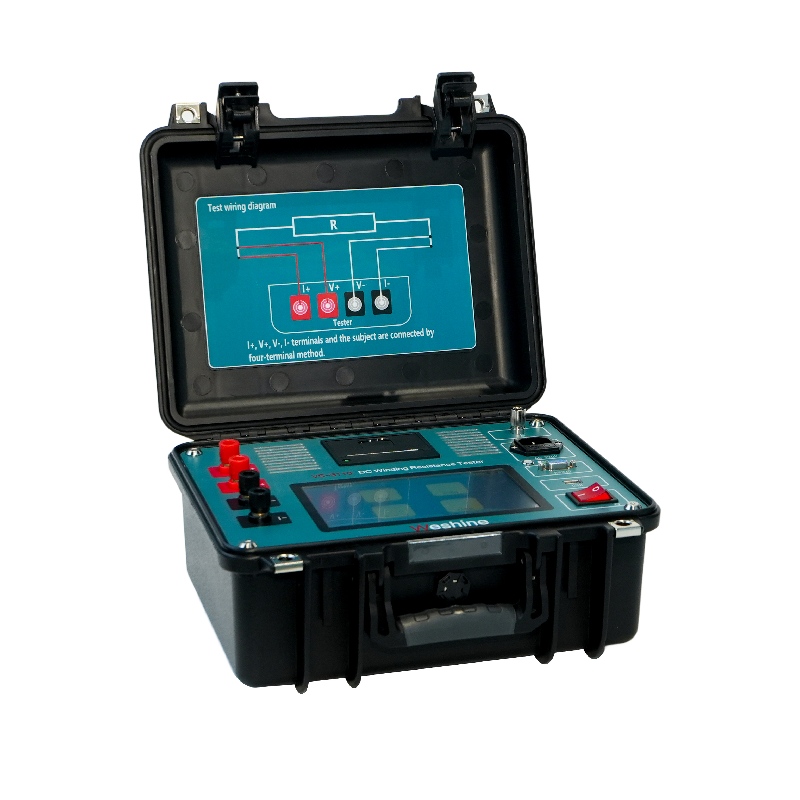

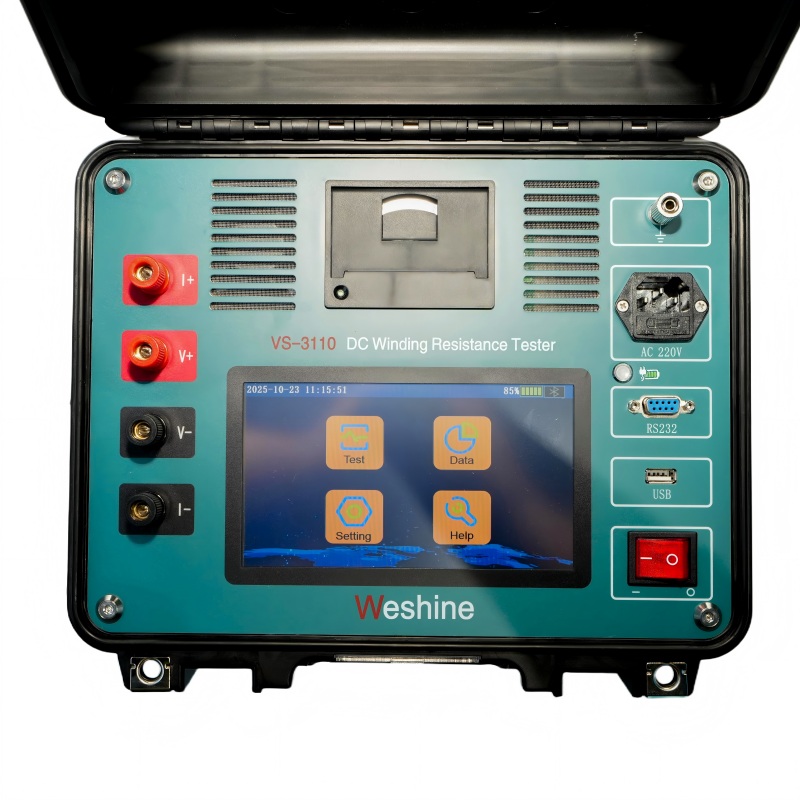

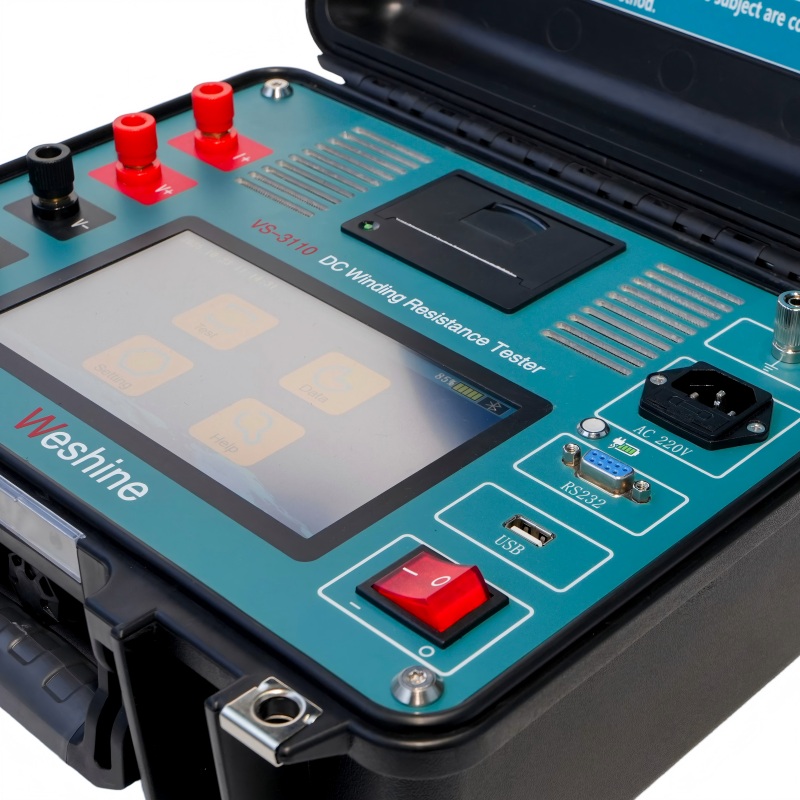

The 10 A Transformer Resistance Tester, also called Transformer DC Resistance Tester or Transformer Ohmmeter, made for winding resistance testing of transformer, is a line-operated, field-portable instrument specifically designed to safely and accurately measure the resistance of all types of magnetic windings. It tests transformers, rotating motor windings, shunt reactors, and low resistance measurements of connections, contacts, and control circuits.
The double potential input can measure the resistance of two primary windings, two secondary windings or one primary and one secondary winding at the same time. This dual reading and dual injection function is an effective way to complete the test in time.
Weshine® Winding Resistance Test of Transformer Parameter (Specification)
|
PRODUCT INFORMATION |
|||
|
Product Name |
10 A TRANSFORMER RESISTANCE TESTER FOR Winding Resistance Test of Transformer |
||
|
Test Range |
200 μΩ ~ 50 kΩ |
Output Current |
10 A |
|
Power Supply |
AC220V |
Accuracy |
0.2% |
|
Resolution |
0.0001 μΩ |
Certificates |
CE; EMC; LVD; ISO; IEC; |
|
Dimensions |
330 x 250 x 150 mm |
Model Number |
VS-3110 |
Typical Application
The purpose of Weshine® Winding Resistance Test of Transformer is:
-Check the integrity of transformer winding
-Check the integrity of the tap changer (if any)
-Check internal connections
-Calculate the conductor loss caused by DC resistance (p=I²R）
The specification of each transformer will be determined through type test, routine test, special test and other tests.
Selections
Weshine has 8 years experience specifically for deal with complete range of Electrical Equipment. At present, Weshine has invented various Transformer Resistance Tester as shown as form:
|
ORDERING INFORMATION FOR TRANSFORMER RESISTANCE TESTER |
||||||
|
Cat. No. |
Max Test Current |
Max Test Range |
Accuracy |
Lith. battery |
Winding magnetization |
Auto demagnetization |
|
VS-3102A |
10 A |
50 kΩ |
±0.2% |
√ |
|
|
|
VS-3102S |
10 A |
50 kΩ |
√ |
|
|
|
|
VS-3110 |
10 A |
50 kΩ |
|
|
|
|
|
VS-3120 |
20 A |
50 kΩ |
|
|
|
|
|
VS-3140 |
40 A |
50 kΩ |
|
|
|
|
|
VS-3150 |
50 A |
50 kΩ |
|
|
|
|
|
VS-3310 |
10 A |
400 Ω |
|
√ |
|
|
|
10 A |
400 Ω |
|
√ |
√ |
||
|
VS-3320 |
20 A |
200 Ω |
|
√ |
|
|
|
VS-3320A |
20 A |
200 Ω |
|
√ |
√ |
|
|
VS-3340 |
40 A |
200 Ω |
|
√ |
|
|
|
VS-3340A |
40 A |
200 Ω |
|
√ |
√ |
|
Based on Supply Chain issues: Please contact your preferred Authorized Weshine Distributor for current pricing and lead times.
Quality Certificates
We always believe that all the success of our company is directly related to the quality of the products we provide. Winding resistance test of transformer meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
Shipment
For further information on Weshine's Service Solutions, contact our 24/7 online sales representative to get quotes from Weshine.
Contact us
|
FEEL FREE TO MAKE A PHONE CALL:400 996 1868 |
OR E-MAIL TO: info@weishengelectric.com |
|
SALES OFFICE Weshine Limited 602, Building 3, Diangu Technology Center, No. 3088, Lekai North Street W/app: +86 1873 1260 588 E. info@weishengelectric.com sale01@weishengelectric.com
|
CONTACT OFFICE T. 0312 3188565 E. bdweisheng@weishengelectric.com
AFTER-SALES SERVICE T. +86 157 1252 6062
|
