Open and Short Circuit Test of Transformer

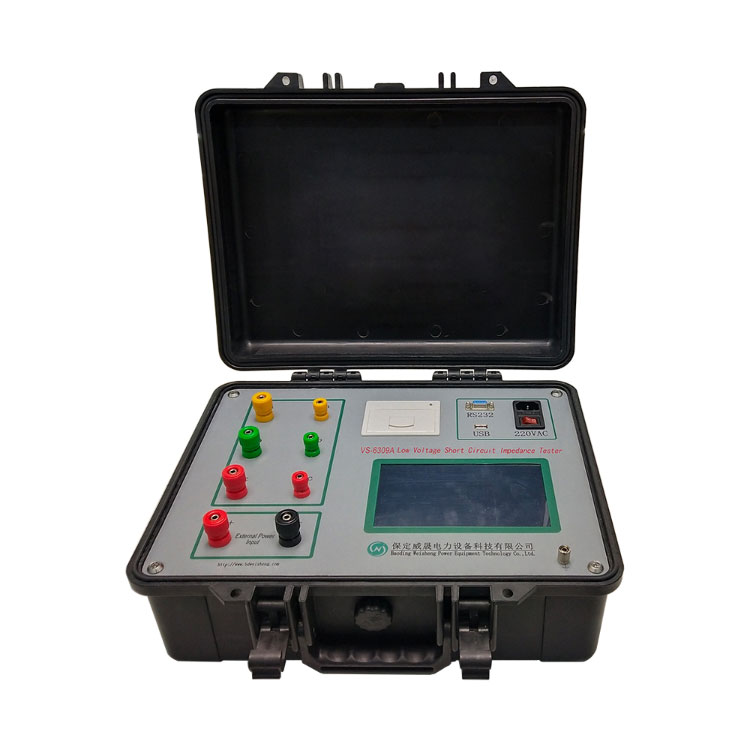

Transformer LV Short-circuit Impedance Testerfor Weshine® Open and Short Circuit Test of Transformer

The automatic transformer low-voltage short-circuit impedance tester has two test power models:

1. Internal power supply: The three-phase transformer test can be completed with one wiring without an external voltage regulator. The test is simple and suitable for on-site testing.

2. External power supply: apply test power through a voltage regulator, suitable for indoor testing.

Display three-phase voltage, three-phase current, three-phase power, three-phase short-circuit impedance (Zk), three-phase short-circuit reactance (Xk), three-phase short-circuit inductance (Lk), three-phase short-circuit impedance voltage (Zke), and automatically calculate the transformer Converted to rated temperature, rated current in percent impedance voltage, and percent error from nameplate impedance. It can be used to check the single-phase defects of three-phase transformers.

The Open and Short Circuit Test of Transformer can record the data of three single-phase measurements, and can calculate the impedance voltage and impedance voltage percentage error of the transformer according to the different connections of the transformer. After three single-phase tests are completed, the calculation results of three-phase short-circuit impedance can be displayed. The test results are automatically converted, with frequency correction, temperature conversion, and current conversion to improve the comparability of test data. VS-6309B has no-load and load test functions.

Weshine® Open and Short Circuit Test of Transformer Parameter (Specification)

Open and Short Circuit Test of Transformer Features

1. Single-phase impedance, three-phase impedance, zero-sequence impedance (star with neutral point) measurement, no-load test function.

2. Two power supply modes: internal power supply and external single-phase voltage regulator.

3. The voltage and current test range is wide and the precision is high.

4. With a 7.0-inch touch screen, the operation is simple.

5. Built-in large-capacity memory, not easy to lose, can save 160 sets of data.

6. Built-in high-speed micro thermal printer, which can print test data.

7. Built-in high-precision clock, real-time display time.

8. With U disk storage function.
