Transformer Oil Dielectric Test1

Weshine® Oil BDV Tester for Transformer Oil Dielectric Test with CE certificate, high quality and accuracy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Oil BDV Tester from Weshine!

Send Inquiry

Product Description

Weshine®Oil BDV Tester for Transformer Oil Dielectric Test with CE certificate, high quality and accuracy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Oil BDV Tester from Weshine!



Product Introduction



Oil BDV Tester for Transformer Oil Dielectric Test




The Oil BDV Tester, also called Transformer Oil Dielectric Strength Tester or Transformer Oil Breakdown Voltage Tester, made for Transformer Oil Dielectric Test .



Transformer oil (Insulating oil) in electrical power apparatus serves two primary roles, as an insulator and a coolant. As an insulating liquid, oil’s most important property is a high dielectric strength and as a cooling liquid, a low viscosity is paramount. The principal nemeses of insulating oil are oxidation, contamination (particularly moisture, which tends to lower the dielectric properties of insulating oil), and excessive temperature. These enemies are managed through design, regimented installation processes and prudent operation of the oil-filled power apparatus. At all stages of a power asset’s life, testing must be conducted to evaluate the condition of the insulating oil. In fact, for some assets, it can be argued that the oil is tested more frequently than any other component.

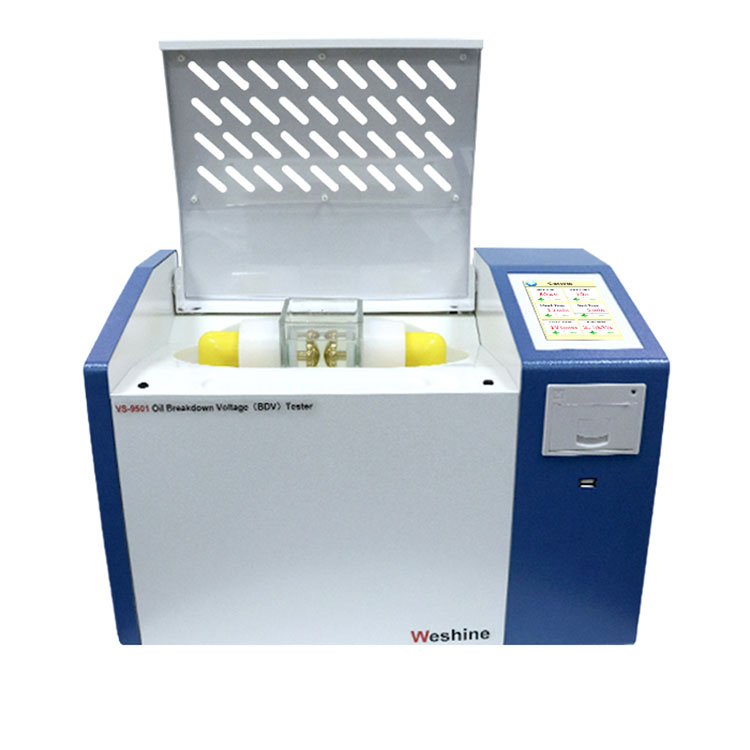

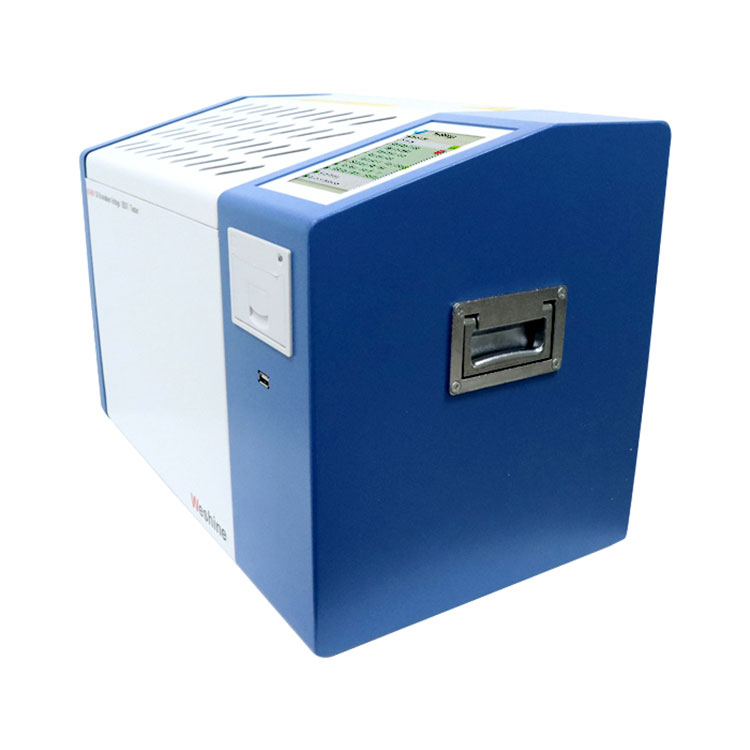

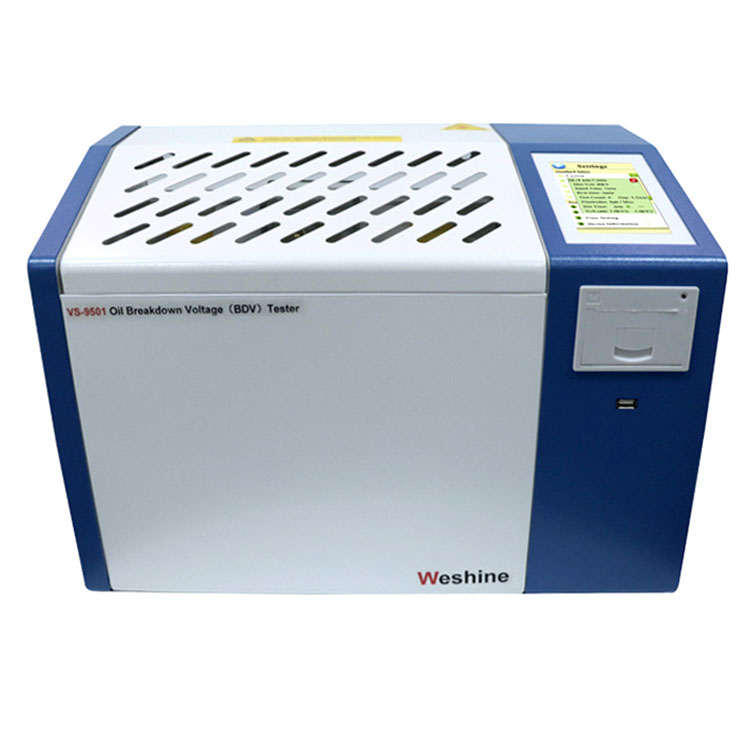

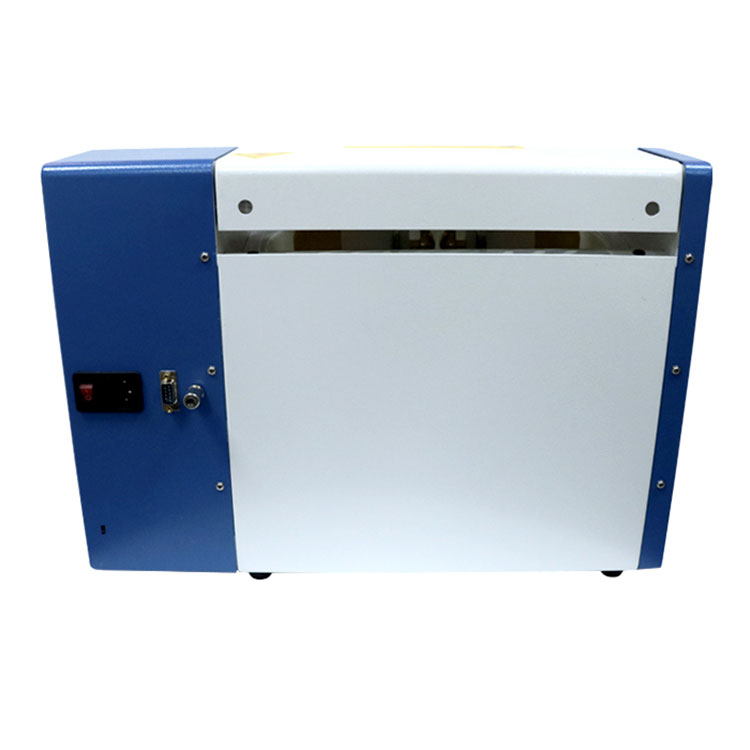

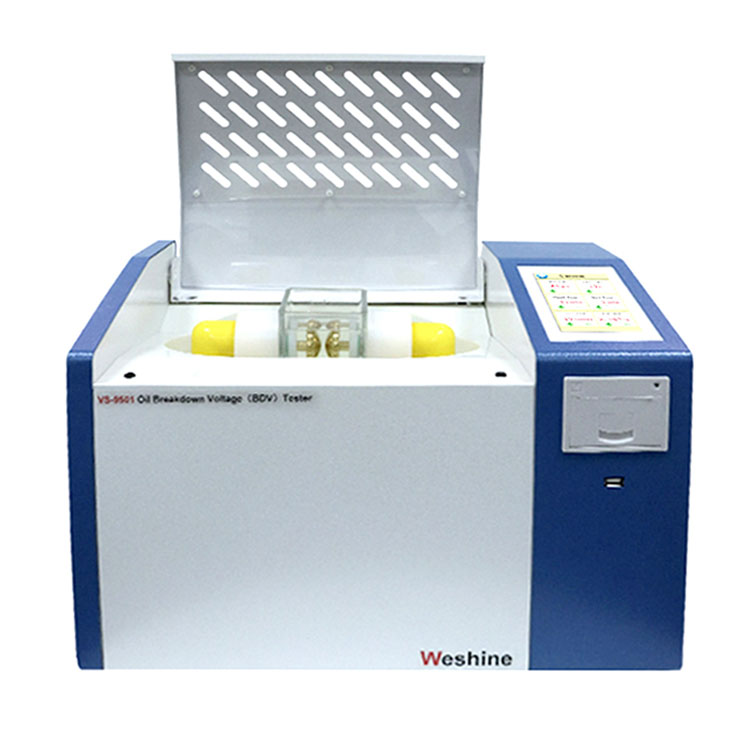

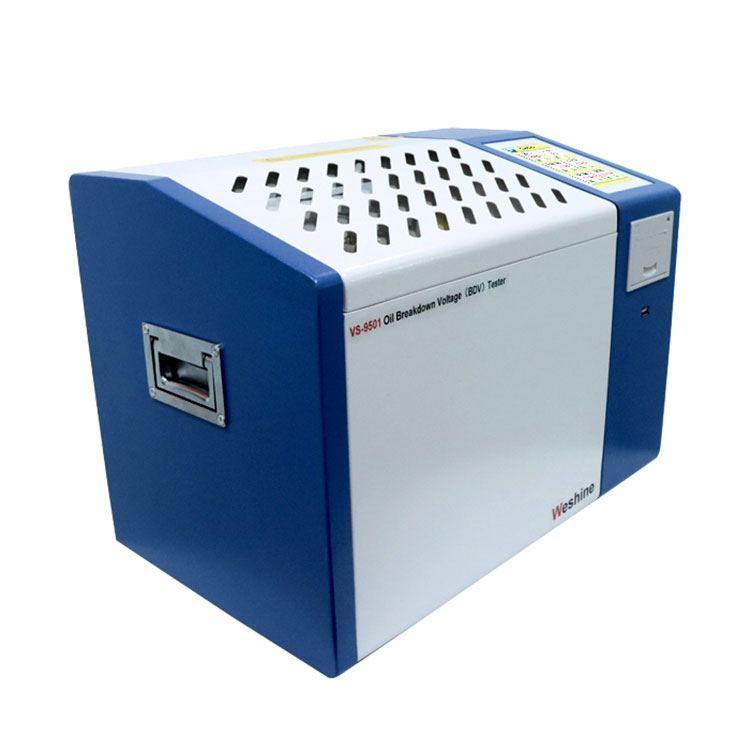

Weshine invent the VS-9501 series is a fully automatic transformer oil BDV test kit designed with advanced technologies to run Transformer Oil Dielectric Test , which has a quick sensing ability to measure accurate breakdown voltage. The series is compliant with national & international standards for test sequences and also has user friendly customized test sequences. The series comes with a large color touch screen display for easy operations. It is provided with internal memory to store up to 100 tests & an inbuilt thermal printer for on-site report printing. As for safety, our transformer oil testing machine series has an open ground detection feature to avoid damage. The molded oil test vessel is suitable to test minerals, ester & synthetic oils and comes with an adjustable electrode gap setting to conduct tests as per standards.


Weshine®Oil BDV Tester for Transformer Oil Dielectric Test Parameter (Specification)



PRODUCT INFORMATION

Product Name

Transformer Oil BDV (Breakdown Voltage) Tester

Model Number

VS-9501B

Test Range

0 ~ 80 kV

Booster Capacity

1.5 kVA

Voltage Raising Speed

0.5  ~ 5 kV/s

Pre-programmed Standards

IEC 60156:1995, GB/T 507-2002, GB/T 507-1986, DL/T 429.9-1991, two customized...

Power Distortion Rate

<1%

Certificates

CE; EMC; LVD; ISO;

Dimensions

460 x 280 x 360 mm

Weight

34.5kg



Selections

Weshine®has 8 years experience specifically for deal with complete range of Electrical Equipment. At present, Weshine has invented variousOil BDV Testerfor Transformer Oil Dielectric Test as shown as form:



ORDERING INFORMATION FOROIL BDV TESTERFOR Transformer Oil Dielectric Test

Cat. No.


Test voltage (kV)

Accuracy

Voltage raising speed (kV/s)

Booster capacity (kVA)

No. of test position

Dimension (mm)

Weight

(kg)

VS-9501A

0 to 80

±3%

0.5 to 5.0

1.5

1

465 x 385 x 425

42

VS-9501A+

0 to 100

±3%

0.5 to 5.0

1

465 x 385 x 425

42

VS-9501B

0 to 80

±3%

0.5 to 5.0

1

460 x 280 x 320

34.5

VS-9501D

0 to 80

±2%

0.5 to 5.0

1

410 x 380 x 370

36

VS-9501D+

0 to 100

±2%

0.5 to 5.0

1

410 x 380 x 370

36

VS-9501S


0 to 80

±2%

0.5 to 5.0

1

430 x 350 x 370

36

VS-9501S+

0 to 100

±3%

0.5 to 5.0

1

465 x 385 x 425

36

VS-9503A

0 to 80

±2%

0.5 to 5.0

3

650 x 470 x 410

42

VS-9503A+

0 to 100

±2%

0.5 to 5.0

3

650 x 470 x 410

42

VS-9503B

0 to 80

±3%

2.0 to 3.5

3

585 x 390 x 410

42

VS-9503B+

0 to 100

±3%

2.0 to 3.5

3

585 x 390 x 410

42

VS-9506A

0 to 80

±2%

0.5 to 5.0

6

800 x 653 x 715

75.5

VS-9506A+

0 to 100

±2%

0.5 to 5.0

6

800 x 653 x 715

75.5

VS-9506B

0 to 80

±3%

2.0 to 3.5

6

760 x 670 x 780

70

VS-9506B+

0 to 100

±3%

2.0 to 3.5

6

760 x 670 x 780

70

Based on Supply Chain issues: Please contact your preferred Authorized Weshine®Distributor for current pricing and lead times.



Quality Certificates

Weshine®always believe that all the success of our company is directly related to the quality of the products we provide. Oil BDV Tester for Transformer Oil Dielectric Test meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
