Transformer Dissolved Gas Analysis

Gas Chromatography for Transformer Dissolved Gas Analysis

Product Introduction:

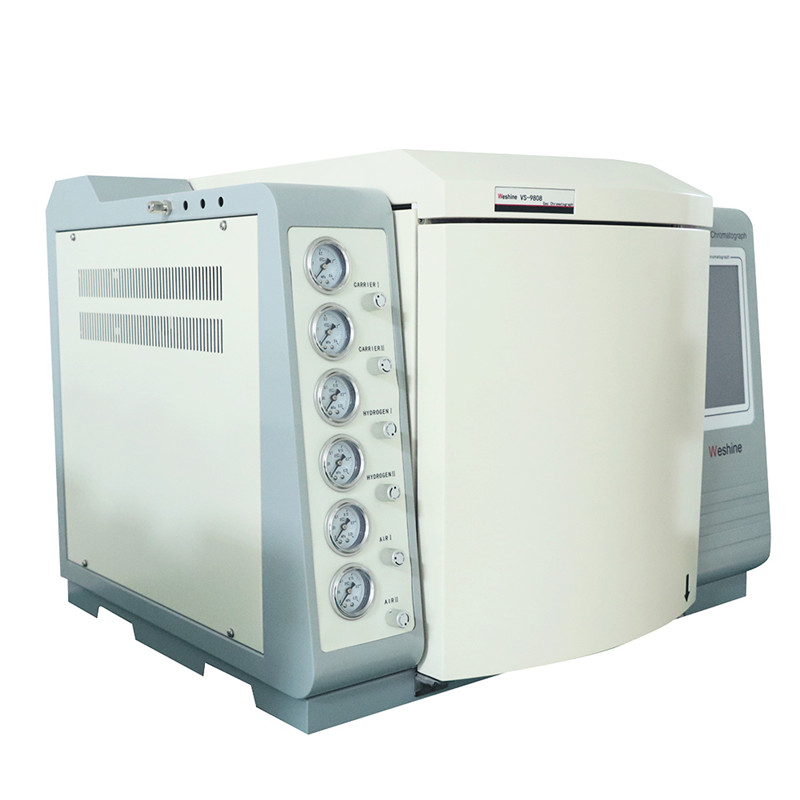

Weshine VS-9808 Gas Chromatography for Transformer Dissolved Gas Analysis specializes in the analysis of gases in transformer insulating oil. The Gas Chromatography for Transformer Dissolved Gas Analysis can analyze 7/9/11 kinds of gas components in the insulating oil through two or three chromatographic columns. If there are many oil samples needed to be tested, then the Headspace Autosampler can help to extract the gases from the oil for the Gas Chromatography for Transformer Dissolved Gas Analysis. 27/72 Samples can be shocked and heated, and then transmit the gases automatically by the Autosampler. It can help the Gas Chromatography for Transformer Dissolved Gas Analysis a lot, and save labor cost and time cost. The software of the Gas Chromatography for Transformer Dissolved Gas Analysis is easy to operate, we can provide online video guidance and remote assistance. Please enjoy our 7days*24hours after-sales service.

Product Parameter:

Product Feature:

Gas Chromatography for Transformer Dissolved Gas Analysis mainly analysis the gases components from the transformer insulating oil. Gas Chromatography for Transformer Dissolved Gas Analysis works with the Air Generator, Hydrogen Generator, and Oscillator.

The Oscillator shocks and heats up the oil sample to get the gas from the oil. And then inject the gas sample into the Gas Chromatography for Transformer Dissolved Gas Analysis. Before that, we should use the Air Generator and Hydrogen Generator to fire the FID1 and FID2. The Gas Chromatography for Transformer Dissolved Gas Analysis will analysis the gas sample automatically, and you will see the gases components waves on the software on PC. The test report can be printed by the printer from the Gas Chromatography for Transformer Dissolved Gas Analysis.

Product details:

For Headspace Sampler:

The Autosampler can extracts the gases from the insulating oils, and transmit the gases by carrier gas to the Gas Chromatography for Transformer Dissolved Gas Analysis Columns. It has the function of the heating and shocking, instead of the manual oscillator.

Details of the Vials

For Oscillator:

The Oscillator heats and shocks the transformer oil to extract the gases from the transformer insulating oils automatically. The temperature and times can be set. Put the 40ml oils into the 100ml-injector, and then put 8 injectors at max into the oscillator to start the extraction works.

For Hydrogen Generator:

This Hydrogen Generator make the hydrogen for the Gas Chromatography for Transformer Dissolved Gas Analysis, the hydrogen can help to fire the FID1 and FID2.

For the Air Generator:

The Air Generator provides the air for the Gas Chromatography for Transformer Dissolved Gas Analysis to help the Hydrogen firing.

Quality Certificates

We always believe that all the success of our company is directly related to the quality of the products we provide. Oil BDV Tester forDielectric Test of Transformer Oilmeet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.

Shipment

For further information on Weshine®'s Service Solutions, contact our 24/7 online sales representative to get quotes from Weshine®.
