Tan Delta Value of Power Transformer

Transformer automatic anti-interference precision dielectric loss tester for Weshine® Tan Delta Value of Power Transformer with CE certificate, high quality and accrucy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Winding Resistance Test of Transformer from Weshine!

Send Inquiry PDF DownLoad

Product Description

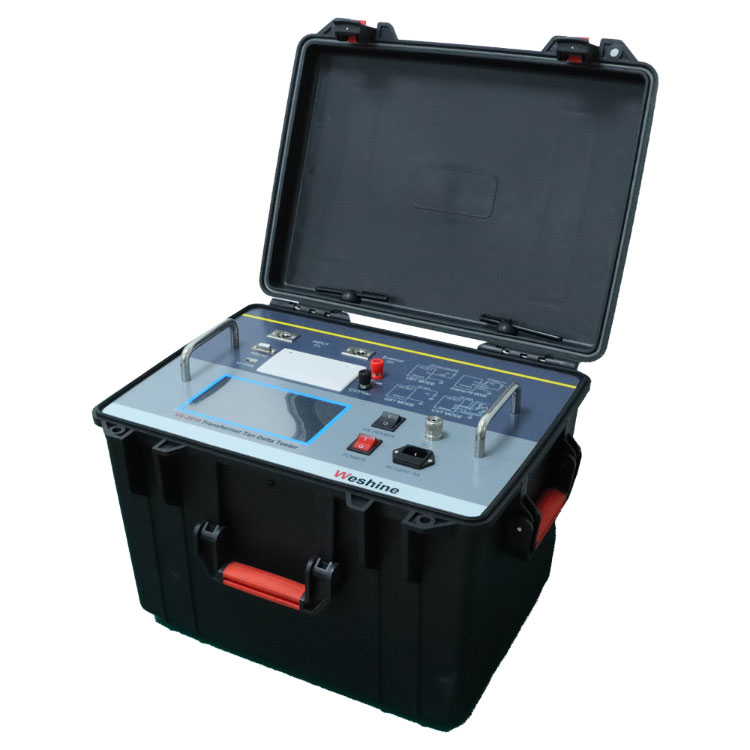

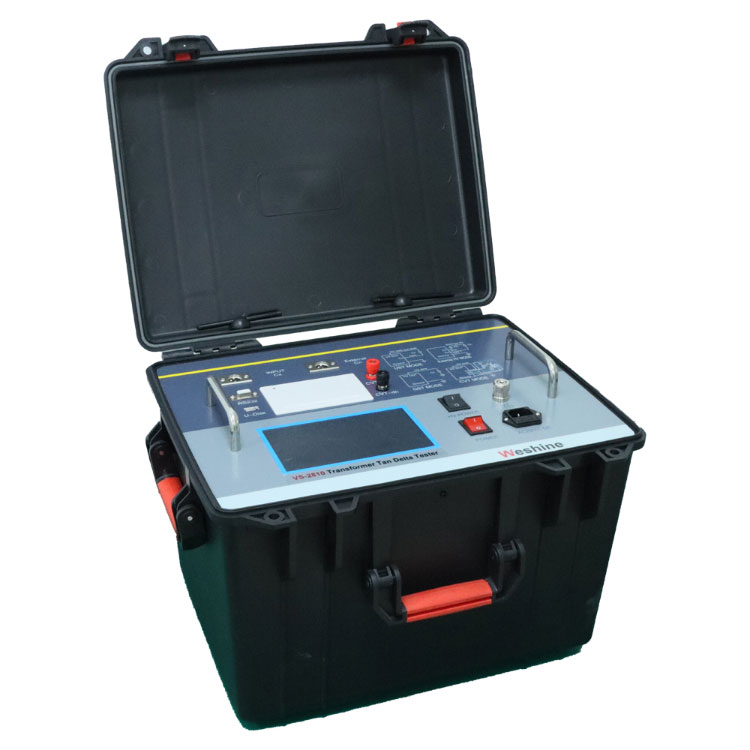

Transformer automatic anti-interference precision dielectric loss tester for Tan Delta Value of Power Transformer

Tan Delta Value of Power Transformer breaks through the traditional bridge measurement method, adopts variable frequency power supply technology, uses single chip microcomputer, and modern electronic technology to perform automatic frequency conversion, analog/digital conversion and data calculation; it achieves strong anti-interference ability and fast test speed. , High precision, automatic digitization, easy operation; the power supply adopts high-power switching power supply, output 45Hz and 55Hz pure sine wave, automatic pressurization, can provide a voltage of up to 10 kV; automatically filter out 50Hz interference, suitable for electromagnetic fields such as substations Intrusive field tests. It is widely used in the dielectric loss measurement of transformers, mutual inductors, bushings, capacitors, arresters and other equipment in the power industry.

Weshine® Tan Delta Value of Power Transformer Parameter (Specification)

PRODUCT INFORMATION
Product Name	TRANSFORMER DIELECTRIC LOSS TESTER FOR Tan Delta Value of Power Transformer
Test Current Range	10μA~1A	Accuracy of Cx	±(rdg*1%+1pF)
Power Supply	AC220V	Measuring time	About 40s
Accuracy of tan delta	±(rdg*1%+0.00040)	Certificates	CE; EMC; LVD; ISO; IEC;
Dimensions	460360350mm	Model Number	VS-2810

Quality Certificates

We always believe that all the success of our company is directly related to the quality of the products we provide. Tan Delta Value of Power Transformer meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
