Sweep Frequency Response Analyser

Weshine® Sweep Frequency Response Analyser for SFRA transformer test with CE certificate, high quality and accuracy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Sweep Frequency Response Analyser for SFRA transformer test from Weshine®! Weshine® invented the VS-1000 series of Sweep Frequency Response Analyser for SFRA transformer test detects potential mechanical and electrical problems that other methods are unable to detect. Major utilities and service companies have used the SFRA transformer test method for more than a decade. The measurement is easy to perform and will capture a unique fingerprint of the transformer. The measurement is compared to a reference fingerprint and gives a direct answer if the mechanical parts of the transformer are unchanged or not. Deviations indicate geometrical and/or electrical changes within the transformer.

Send Inquiry

Product Description

Sweep Frequency Response Analyser for SFRA transformer test

The key takeaway is that for swept frequency response analysis results to be truly useful over the life of a transformer or other asset, SFRA transformer test should be performed using the same test setup every time. If for some reason they cannot be the same, the difference in settings should be clearly noted in the test record.

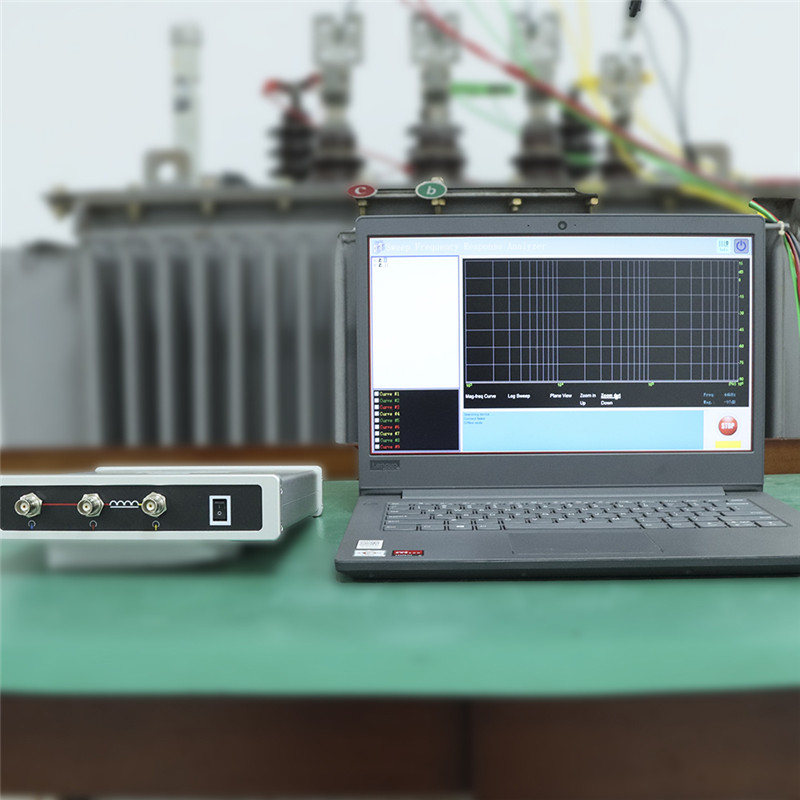

The lightweight and versatile Weshine® Sweep Frequency Response Analyser for SFRA transformer test features easy setup to quickly assess the health of transformers and other equipment with windings. Typical scan speeds of the Sweep Frequency Response Analyser for SFRA transformer test are between 15 and 30 seconds, providing fast and reliable SFRA transformer test, often cutting test times in half. Whether using the instrument at the factory to baseline test new transformers, as part of diagnostic maintenance, or to determine if a transformer can be brought back into service after a failure, its highly repeatable measurements detect subtle changes.

FEATURES:

* Highest dynamic range and accuracy in the industry
* Smallest and most rugged Sweep Frequency Response Analyser in the industry
* Fulfills all international standards for SFRA transformer test
* Advanced analysis and decision support built into the software
* Imports data from other Sweep Frequency Response Analyser

Sweep Frequency Response Analyser for SFRA transformer test Parameter (Specification)

PRODUCT INFORMATION
Product Name	Sweep Frequency Response Analyser for SFRA transformer test
Test Method	Sweep frequency(SFRA)	Dynamic Range	-100 dB to 20 dB
Frequency Range	0.001 %	Level Resolution	0.001 dB
Frequency Resolution	0.001%	Test Standard	ASTM 2170, ASTM D445
Measurement Time	1 min ~ 2 min for single-phase winding
Dimensions	240 mm * 190 mm * 40 mm	Certificates	CE; EMC; LVD; ISO; IEC;
Weight	2.45 kg	Model Number	VS-1000

Quality Certificates

Weshine® always believe that all the success of our company is directly related to the quality of the products we provide. Sweep Frequency Response Analyser for SFRA transformer test meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
