Partial Discharge in Transformer

Weshine is New Brand and Fast rising in the Electric Area.Relying on High-Quality product and Efficient after-sales service to win the trust of the customers.Weshine is your trusted manufacturer and supplier in China. Weshine® Partial Discharge in Transformer Equipment is mainly test the various relays and microcomputer protection, theWeshine® Partial Discharge in Transformer can simulate various complex transient, permanent and transformable faults to conduct a whole group of tests.The Partial Discharge in Transformer can test the current,voltage,inverse time,power direction,impedance,differential,low cycle,synchronous,frequency,DC,intermediate,time etc. The after-sales service of The Partial Discharge in Transformer is Excellent.Looking forward to have a good and long partnership with you.

Model No.1

Partial Discharge in Transformer

VSPD-2000

Product Introduction:

Weshine Partial Discharge in Transformer is simple and easy to use,Partial Discharge in Transformer is very suitable for daily inspection of equipment points to grasp the operation status of electrical equipment in real time.Partial Discharge in Transformer can also detects faults which cannot be detected with thermal imaging cameras. Such as corona and early tracking and so on.

Product Parameter:

Product Feature:

Partial Discharge in Transformer is simple and easy to use,Partial Discharge in Transformer is very suitable for daily inspection of equipment points to grasp the operation status of electrical equipment in real time.Partial Discharge in Transformer can also detects faults which cannot be detected with thermal imaging cameras. When the local discharge occurs inside the equipment,it cannot be detected by infrared methods,but the Partial Discharge in Transformer can be used to detect the surface or joints surface of electrical equipment.

Product details:

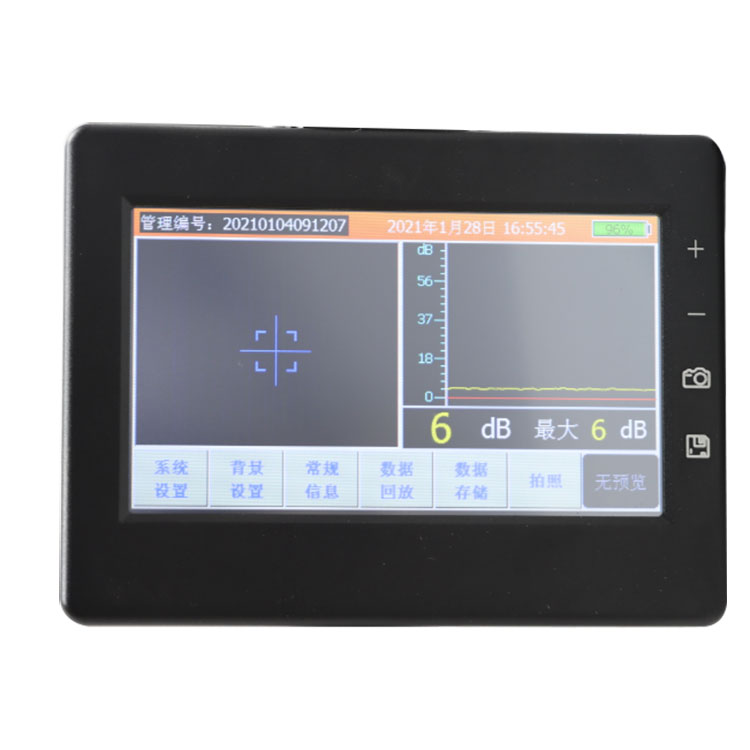

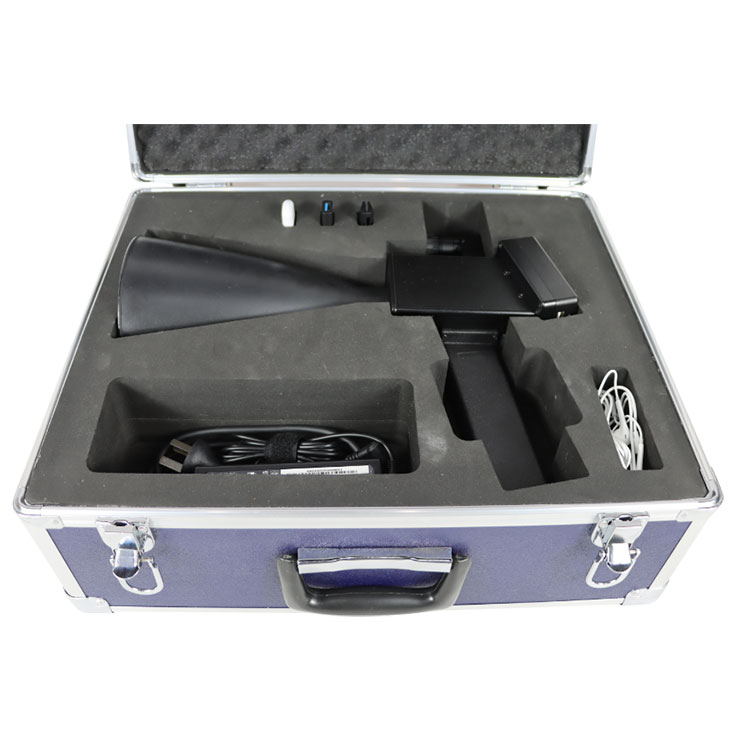

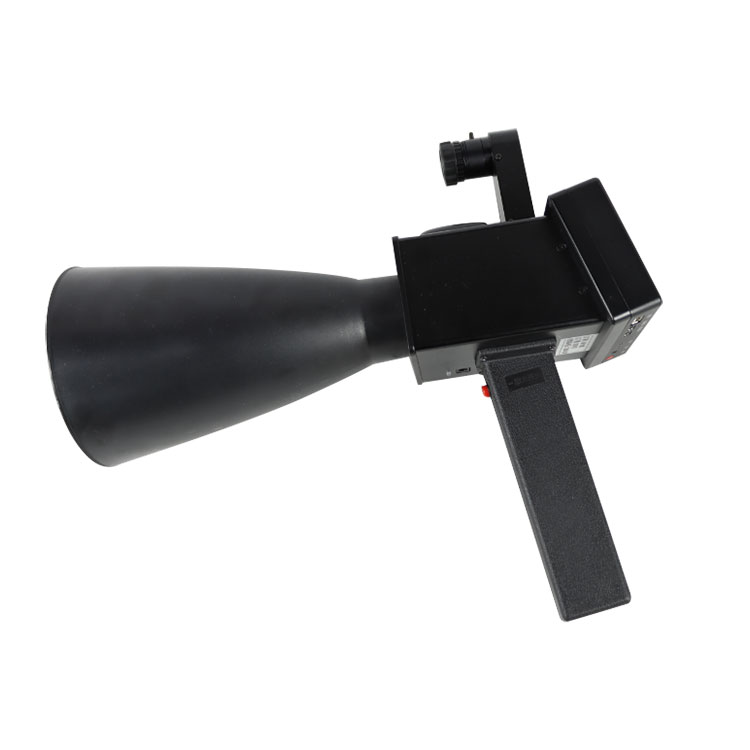

Partial Discharge in Transformer can accurately locate the place to inspect. The Partial Discharge in Transformer will receive ultrasonic signal (whose  frequency ranges from 35 to 45kHz ) in the air through the ultrasonic sensor and electrical circuits, and convert the received ultrasonic audio signal and oscillogram to audible sound and visual waveform file. The screen is color touchscreen, which can display information such as waveform, dB values, temperature, humidity and GPS.

Model No.2

Partial Discharge in Transformer

VS-9104

Product Introduction:

Weshine Partial Discharge in Transformer is using Windows System operation platform,The Partial Discharge in Transformer shows ellipse,straight line,sine wave display,two-dimensional,three dimensional graphic analysis mode and spectrum window.The Partial Discharge in Transformer is Q-V-F Characteristic window,The Partial Discharge in Transformer can statically measure,observe and analyze the partial discharge pulse of one cycle test voltage in details.

Product Parameter:

Product Feature:

Partial Discharge in Transformer is the dedicated product to measure and analyze the insulation ability of electrical equipment. The Partial Discharge in Transformer system adopts modern electronic and computer integrated technology with the functions of signal amplification,filtration ,data sampling,data processing,test report generation automatically.The Partial Discharge in Transformer can finish the measurement,location and analysis.

Product details:

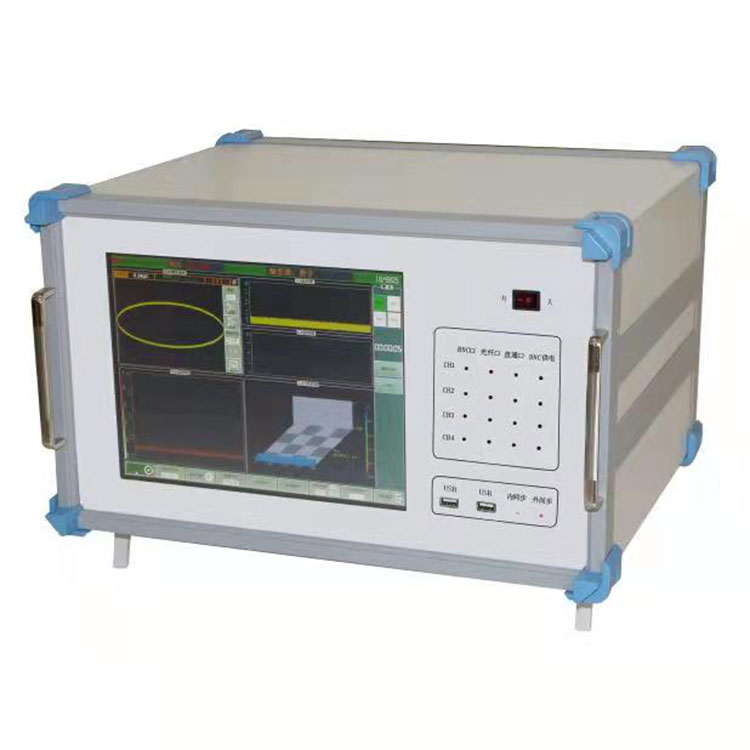

The Partial Discharge in Transformer is a new generation digital analyzer with high performance and new technique. The Partial Discharge in Transformer is a desktop with advantage of multi-interface. The Partial Discharge in Transformer has TFT LCD display,the data can be seen very clearly.

Model No.3

Partial Discharge in Transformer

VS-9209

Product Introduction:

Weshine Partial Discharge in Transformer VS-9209 is equipped with transient ground wave and ultrasonic measurement methods.Partial Discharge in Transformer high frequency current measurement methods can be selected according to demand.The Partial Discharge in Transformer will produce a series of physical phenomena and chemical changes.

Product Parameter:

Product Feature:

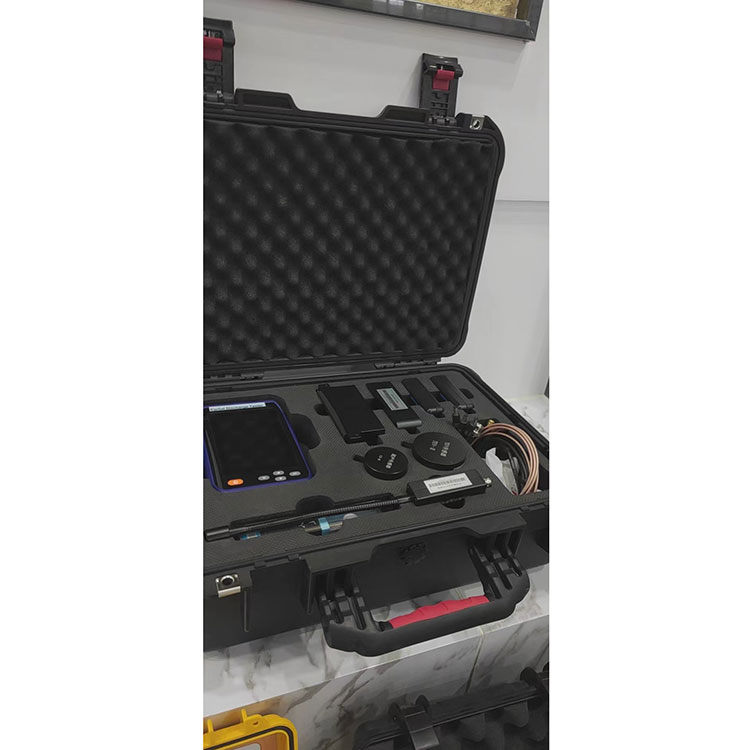

Partial Discharge in Transformer is multifunctional handheld instrument.The Partial Discharge in Transformer based on the detection methods of ground wave,ultrasonic,UHF and high-frequency current to test the partial discharge of the equipment.The Partial Discharge in Transformer provides the storage and readout functions of two-dimensional and three-dimensional maps.The Partial Discharge in Transformer can better evaluate the partial discharge of electrical equipment.

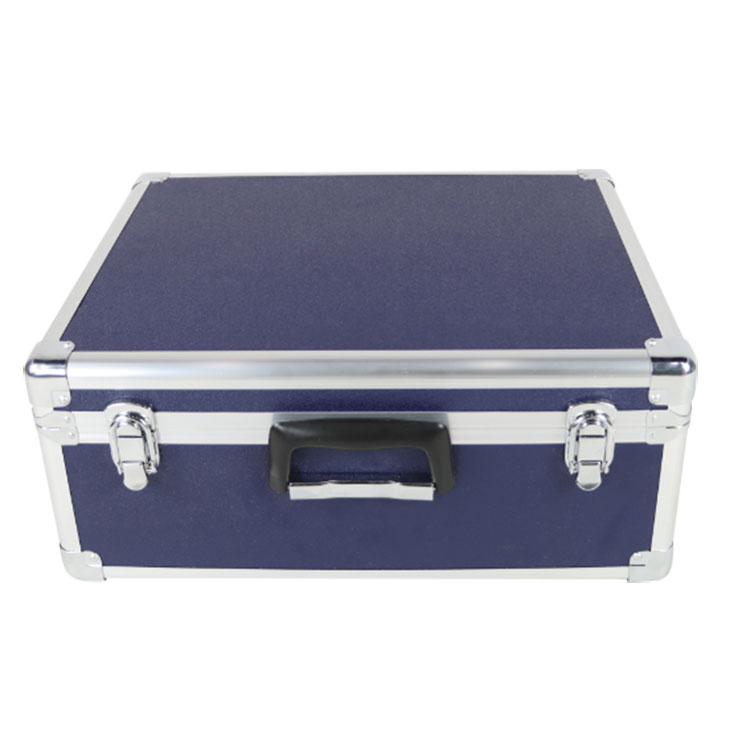

Packing Details:
