Oil Breakdown Voltage Tester

Weshine® 25kg Ultralight 80kV Insulation Oil Dielectric Strength BDV Test Equipment Transformer Oil Breakdown Voltage Tester with CE certificate, high quality and accuracy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Oil Breakdown Voltage Tester from Weshine!

Send Inquiry

Product Description

Video

https://youtube.com/shorts/ArJYwqksR30?feature=share

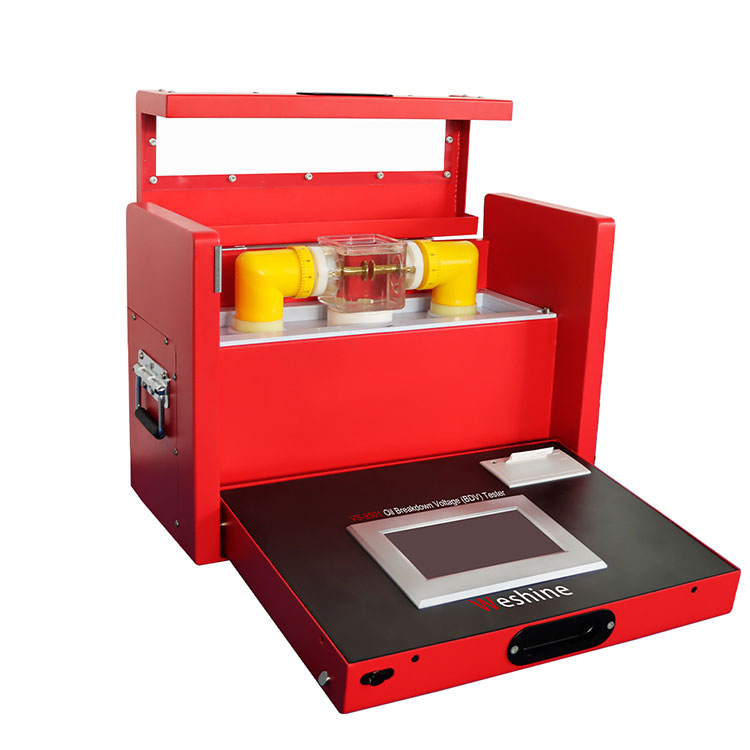

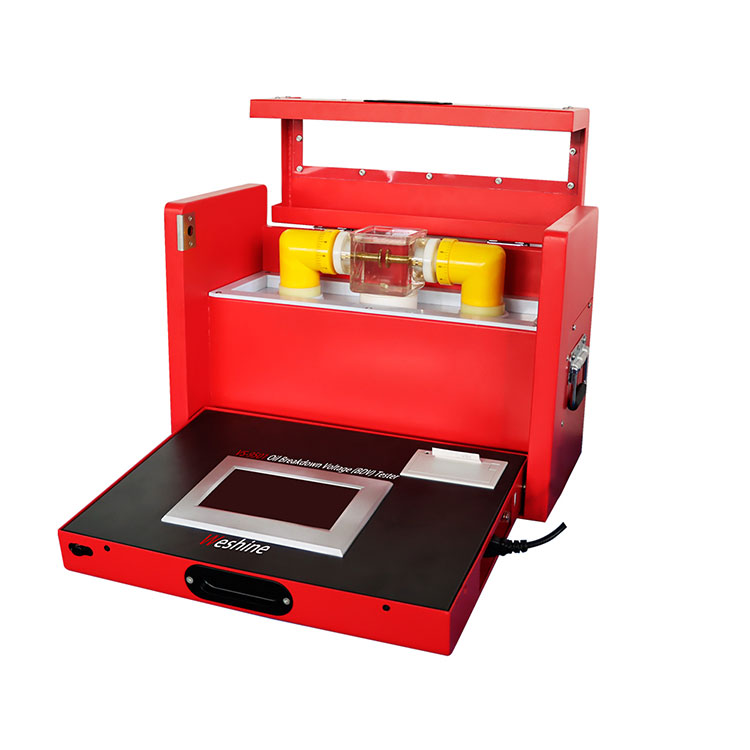

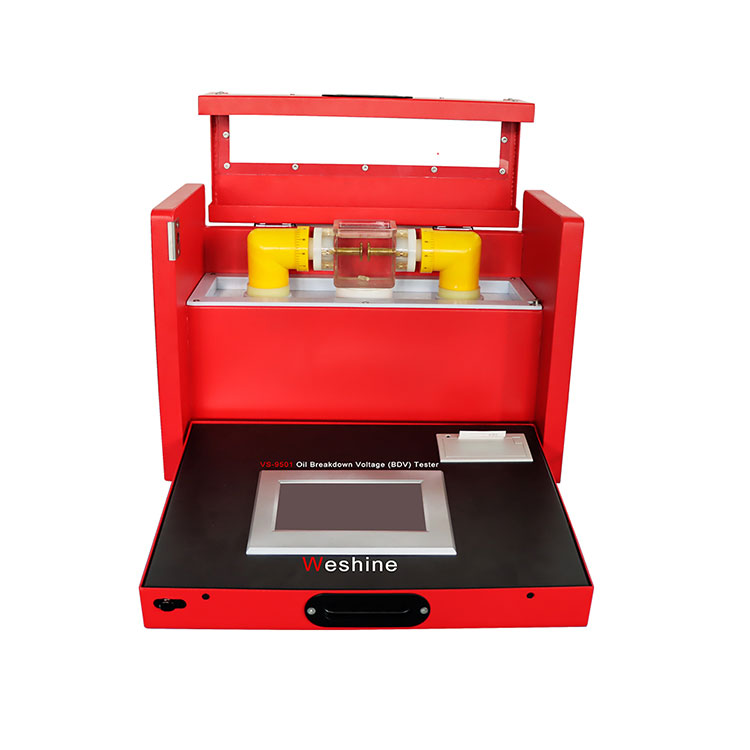

25kg Ultralight 80kV Insulation Oil Dielectric Strength BDV Test Equipment Transformer OilBreakdown Voltage Tester

TheOil Breakdown Voltage Tester, also called Transformer Oil Dielectric Strength Tester or Transformer Oil BDV Tester, made for testing Transformer Oil BDV Value.

Transformer oil (Insulating oil) in electrical power apparatus serves two primary roles, as an insulator and a coolant. As an insulating liquid, oil’s most important property is a high dielectric strength and as a cooling liquid, a low viscosity is paramount. The principal nemeses of insulating oil are oxidation, contamination (particularly moisture, which tends to lower the dielectric properties of insulating oil), and excessive temperature. These enemies are managed through design, regimented installation processes and prudent operation of the oil-filled power apparatus. At all stages of a power asset’s life, testing must be conducted to evaluate the condition of the insulating oil. In fact, for some assets, it can be argued that the oil is tested more frequently than any other component.

Weshine invent the VS-9501 series is a fully automatic TransformerOil Breakdown Voltage Testerdesigned with advanced technologies to measure the Transformer Oil BDV Value, which has a quick sensing ability to measure accurate breakdown voltage. The series is compliant with national & international standards for test sequences and also has user friendly customized test sequences. The series comes with a large color touch screen display for easy operations. It is provided with internal memory to store up to 100 tests & an inbuilt thermal printer for on-site report printing. As for safety, our transformer oil testing machine series has an open ground detection feature to avoid damage. The molded oil test vessel is suitable to test minerals, ester & synthetic oils and comes with an adjustable electrode gap setting to conduct tests as per standards.

Weshine® 25kg Ultralight 80kV Insulation Oil Dielectric Strength BDV Test Equipment Transformer OilBreakdown Voltage Tester(Specification)

PRODUCT INFORMATION
Product Name	Transformer Oil BDV (Breakdown Voltage) Tester
Model Number	VS-9501E	Test Range	0 ~ 80 kV
Booster Capacity	1.5 kVA	Voltage Raising Speed	0.5 ~ 5 kV/s
Pre-programmed Standards	DL 429.9-91, GB/T 507-2002, IEC 60156/1995, BS EN60156, NF EN60156, CEI EN60156, SEV EN60156, SABS EN60156, UNE EN60156, VDE 0370, ASTM D877, ASTM D1816, 5 Customized...
Power Distortion Rate	<1%	Certificates	CE; EMC; LVD; ISO;
Dimensions	500 x 240 x 352 mm	Weight	25 kg

Selections

Weshine has 8 years experience specifically for deal with complete range of Electrical Equipment. At present, Weshine has invented various Oil Breakdown Voltage Tester as shown as form:

	ORDERING INFORMATION FOROIL BDV TEST EQUIPMENT
Cat. No.	Picture	Test voltage (kV)	Accuracy	Voltage raising speed (kV/s)	Booster capacity (kVA)	No. of test position	Dimension (mm)	Weight
VS-9501A		0 to 80	±3%	0.5 to 5.0	1.5	1	465 x 385 x 425	42
VS-9501A+		0 to 100	±3%	0.5 to 5.0		1	465 x 385 x 425	42
VS-9501B		0 to 80	±3%	0.5 to 5.0		1	460 x 280 x 320	34.5
VS-9501D		0 to 80	±2%	0.5 to 5.0		1	410 x 380 x 370	36
VS-9501D+		0 to 100	±2%	0.5 to 5.0		1	410 x 380 x 370	36
VS-9501S		0 to 80	±2%	0.5 to 5.0		1	430 x 350 x 370	36
VS-9501S+		0 to 100	±3%	0.5 to 5.0		1	465 x 385 x 425	36
VS-9503A		0 to 80	±2%	0.5 to 5.0		3	650 x 470 x 410	42
VS-9503A+		0 to 100	±2%	0.5 to 5.0		3	650 x 470 x 410	42
VS-9503B		0 to 80	±3%	2.0 to 3.5		3	585 x 390 x 410	42
VS-9503B+		0 to 100	±3%	2.0 to 3.5		3	585 x 390 x 410	42
VS-9506A		0 to 80	±2%	0.5 to 5.0		6	800 x 653 x 715	75.5
VS-9506A+		0 to 100	±2%	0.5 to 5.0		6	800 x 653 x 715	75.5
VS-9506B		0 to 80	±3%	2.0 to 3.5		6	760 x 670 x 780	70
VS-9506B+		0 to 100	±3%	2.0 to 3.5		6	760 x 670 x 780	70
VS-9501B		0 to 80	±3%	0.5 to 5.0		1	500 x 240 x 352	25
VS-9501F		0 to 80	±3%	0.5 to 5.0		1	480 x 400 x 430	34

Based on Supply Chain issues: Please contact your preferred Authorized Weshine Distributor for current pricing and lead times.

Quality Certificates

We always believe that all the success of our company is directly related to the quality of the products we provide. Oil Breakdown Voltage Tester meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
