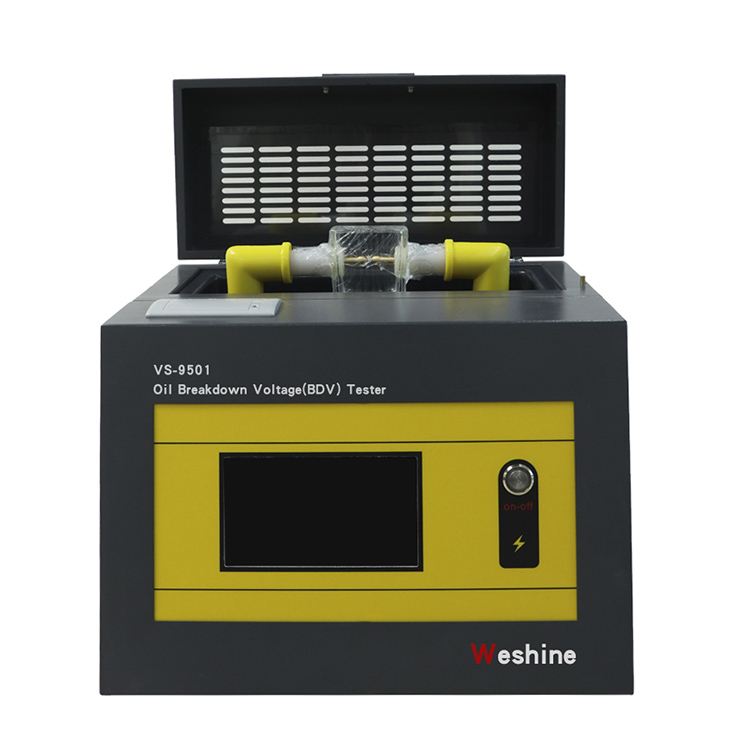

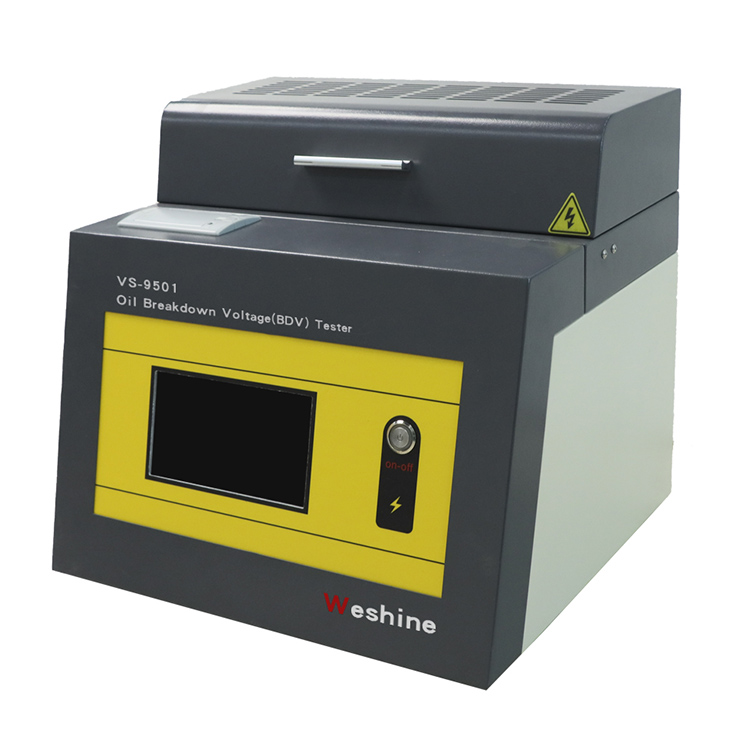

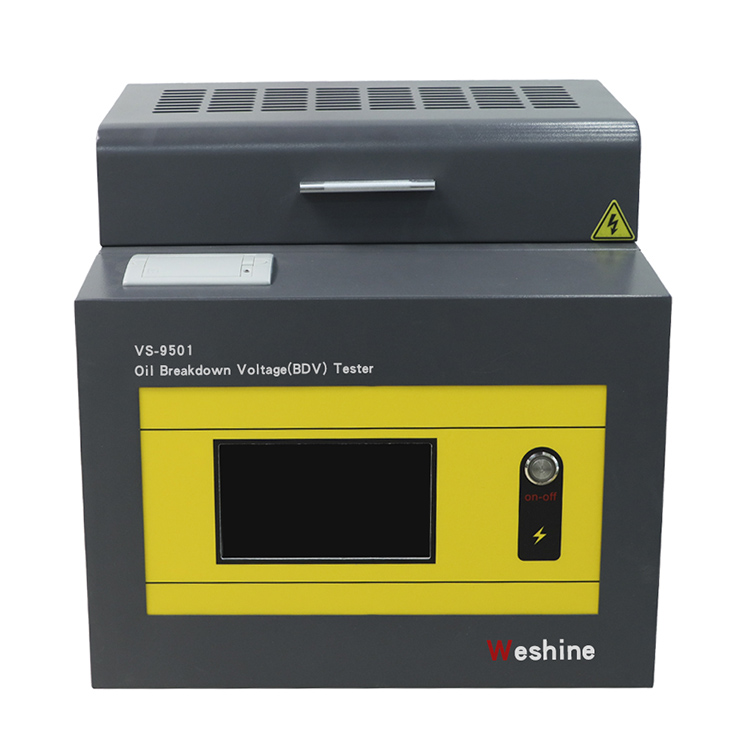

Oil BDV Tester

With Weshine® Oil BDV Tester, user can quickly and easily measure the BDV of transformer oil, helping you to maintain the health of your transformers and extend their lifespan. Regular testing with Weshine® instrument can help user detect potential issues early and take corrective action before a breakdown occurs.

Send Inquiry

Product Description

Product Introduction

An oil BDV tester, also called oil breakdown voltage tester/oil dielectric strength tester, is an instrument used for measuring the breakdown voltage of insulating fluids, commonly known as transformer oil. The BDV of transformer oil is an important parameter to determine the condition of the oil and the transformer. It is a measure of the ability of the oil to withstand electrical stress without breaking down.

The oil BDV tester works by applying a voltage to the oil sample and gradually increasing it until the oil breaks down. The voltage at which breakdown occurs is the BDV of the oil. The tester typically consists of a high voltage transformer, a voltage regulator, and a control unit.

To use the oil BDV tester, a sample of the transformer oil is first taken and filtered to remove any impurities. The oil is then poured into the test cell of the oil BDV tester, which is a cylindrical vessel made of glass or plastic. A pair of electrodes is immersed in the oil sample, and a voltage is applied across them using the tester.

The voltage is gradually increased at a fixed rate until the oil breaks down. The oil BDV tester automatically detects the voltage at which breakdown occurs and displays the BDV value on its screen. The BDV value is typically expressed in kV (kilovolts).

The oil BDV tester is an essential tool for maintaining the health of transformers. By regularly testing the BDV of transformer oil, potential issues can be detected early, and corrective action can be taken to prevent breakdowns and extend the life of the transformer.

In conclusion, the oil BDV tester is a critical instrument in the maintenance of transformers. It enables the measurement of the breakdown voltage of transformer oil, which is an essential parameter in assessing the condition of the oil and the transformer. Regular testing with an oil BDV tester can help prevent breakdowns and extend the life of transformers.

Weshine® Oil BDV Tester Parameter

PRODUCT INFORMATION
Product Name	Transformer Oil BDV Tester (Breakdown Voltage Tester)
Model Number	VS-9501C	Test Range	0 ~ 80 kV
Booster Capacity	1.5 kVA	Voltage Raising Speed	0.5 ~ 5 kV/s
Pre-programmed Standards	IEC 60156:1995, GB/T 507-2002, GB/T 507-1986, DL/T 429.9-1991, two customized...
Power Distortion Rate	<1%	Certificates	CE; EMC; LVD; ISO;
Dimensions	460 x 280 x 360 mm	Weight	34.5kg

Oil Breakdown VoltageTester

Boost speed: 0.5kV/s-5.0kV/s

Output voltage 0~80 kV

FEATURES

The instrument is controlled by large capacity single chip microcomputer.

The instrument oil cup is made of special glass and polymer materials

The instrument has over current, over voltage, short circuit protection and other functions.

PRODUCT INTRODUCTION

1.LCD

2.Printer

3.Oil cup bin cover

4.Power socket

5.Earth column

6.232 interface

Interface display

Product size

Oil BDV Tester

SUPPORTING ACCESSARIES

Oil BDV Tester

Number	Name	Quantity
1	oil cup	1 set
2	power cord	1 pc
3	Standard gauge	1 pc
4	fuse	2 pcs
5	Stirring paddle	2 pcs
6	Tweezers	1 pc
7	Ground wirec	1 pc
8	Printing paper	1 pc

LIVE SHOW

Oil BDV Tester

Manufacturing plant

Logistics Packaging

Weshine Introduction

The production of transformer test instruments and power instrument tests of Weshine Electric conforms to SO9001:2015 quality management system,ISO14001:2015 environmental management system and ISO45001:2018 occupational health and safety management system.

Marketing

Products have been successfully applied in Africa,Europe and the United States and other power infrastructure, and with the United States,Britain,South Africa,Kenya,Turkey and other overseas customers to establish a good cooperative relationship.

Focus on power testing,service every customer attentively.Weshine® Electric

Selections
Weshine® has 8 years experience specifically for deal with complete range of Electrical Equipment. At present, Weshine® has invented various Oil BDV Tester as shown as form:

	ORDERING INFORMATION FOR OIL BDV TESTER
Cat. No.	Test voltage (kV)	Accuracy	Voltage raising speed (kV/s)	Booster capacity (kVA)	No. of test position	Dimension (mm)	Weight (kg)
VS-9501A	0 to 80	±3%	0.5 to 5.0	1.5	1	465x 385 x 425	42
VS-9501A+	0 to 100	±3%	0.5 to 5.0		1	465x 385 x 425	42
VS-9501B	0 to 80	±3%	0.5 to 5.0		1	460 x 280 x 320	34.5
VS-9501D	0 to 80	±2%	0.5 to 5.0		1	410 x 380 x 370	36
VS-9501D+	0 to 100	±2%	0.5 to 5.0		1	410 x 380 x 370	36
VS-9501S	0 to 80	±2%	0.5 to 5.0		1	430 x 350 x 370	36
VS-9501S+	0 to 100	±3%	0.5 to 5.0		1	465 x 385 x 425	36
VS-9503A	0 to 80	±2%	0.5 to 5.0		3	650 x 470 x 410	42
VS-9503A+	0 to 100	±2%	0.5 to 5.0		3	650 x 470 x 410	42
VS-9503B	0 to 80	±3%	2.0 to 3.5		3	585 x 390 x 410	42
VS-9503B+	0 to 100	±3%	2.0 to 3.5		3	585 x 390 x 410	42
VS-9506A	0 to 80	±2%	0.5 to 5.0		6	800 x 653 x 715	75.5
VS-9506A+	0 to 100	±2%	0.5 to 5.0		6	800 x 653 x 715	75.5
VS-9506B	0 to 80	±3%	2.0 to 3.5		6	760 x 670 x 780	70
VS-9506B+	0 to 100	±3%	2.0 to 3.5		6	760 x 670 x 780	70

Based on Supply Chain issues: Please contact your preferred Authorized Weshine® Distributor for current pricing and lead times.
Quality Certificates
Weshine® always believe that all the success of our company is directly related to the quality of the products we provide. Oil BDV Tester meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
