Product Description

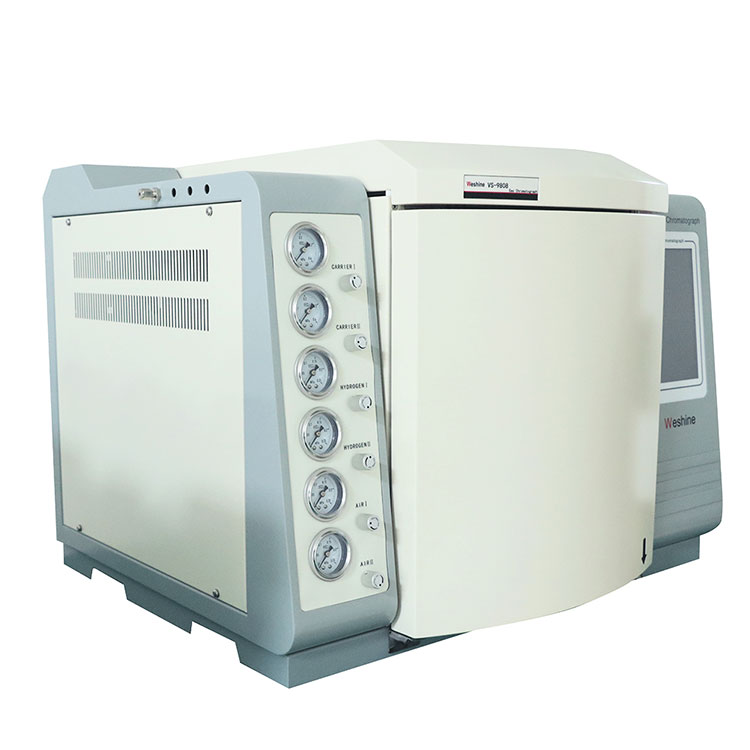

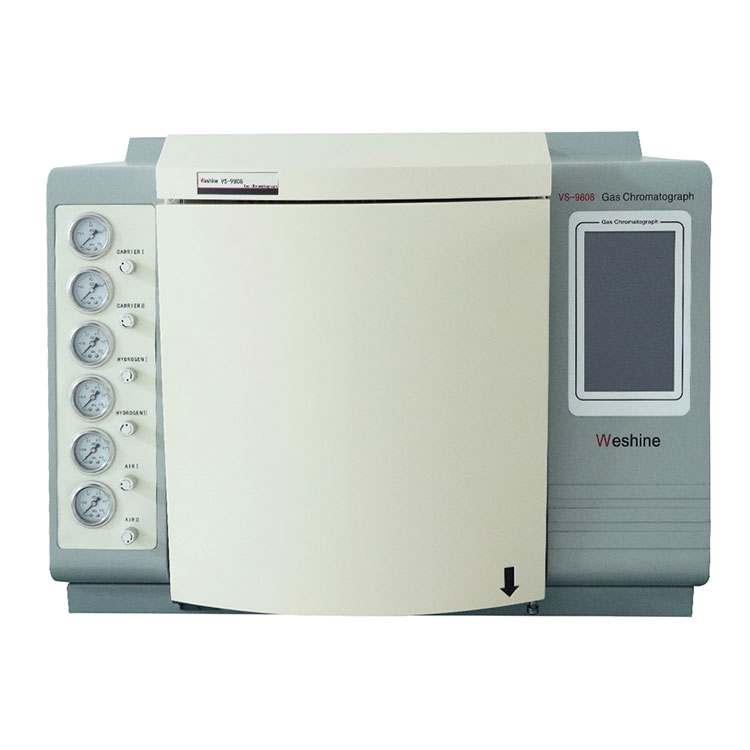

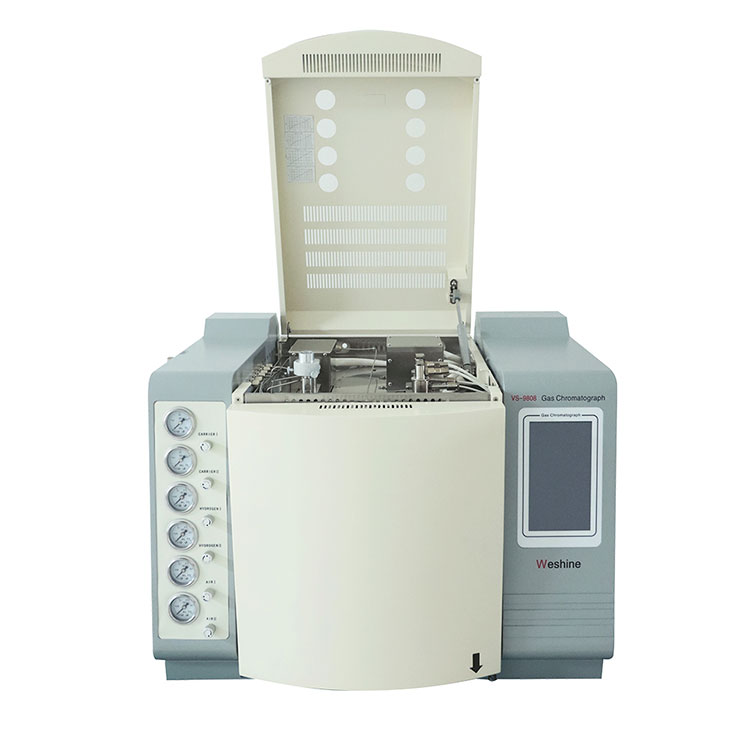

Weshine® Gas Chromatography Instrument

Product Introduction:

Weshine® VS-9808 Gas Chromatography Instrument specializes in the analysis of gases in transformer insulating oil. The Gas Chromatography Instrument can analyze 7/9/11 kinds of gas components in the insulating oil through two or three chromatographic columns.If there are many oil samples needed to be tested, then the Headspace Autosampler can help to extract the gases from the oil for the Gas Chromatography Instrument . 27/72 Samples can be shocked and heated,and then transmit the gases automatically by the Autosampler. It can help the Gas Chromatography Instrument a lot,and save labor cost and time cost.The software of the Gas Chromatography Instrument is easy to operate,we can provide online video guidance and remote assistance.Please enjoy our 7days*24hours after-sales service.

Product Parameter:

Operating display	192*64 periodic lattice liquid crystal
Temperature control area	6 ways
Temperature	5℃~ 400℃
Programming	Rate 0.1 ~ 39℃/min
External events	4 ways
Detector	FID, TCD,ECD, FPD and NPD
Communication interface	Ethernet: IEEE802.3

Product Feature:

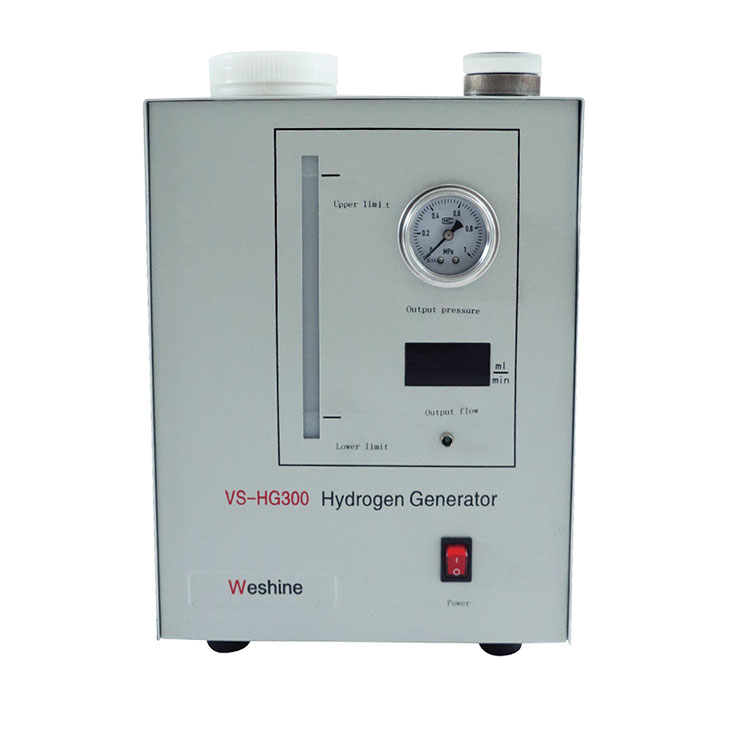

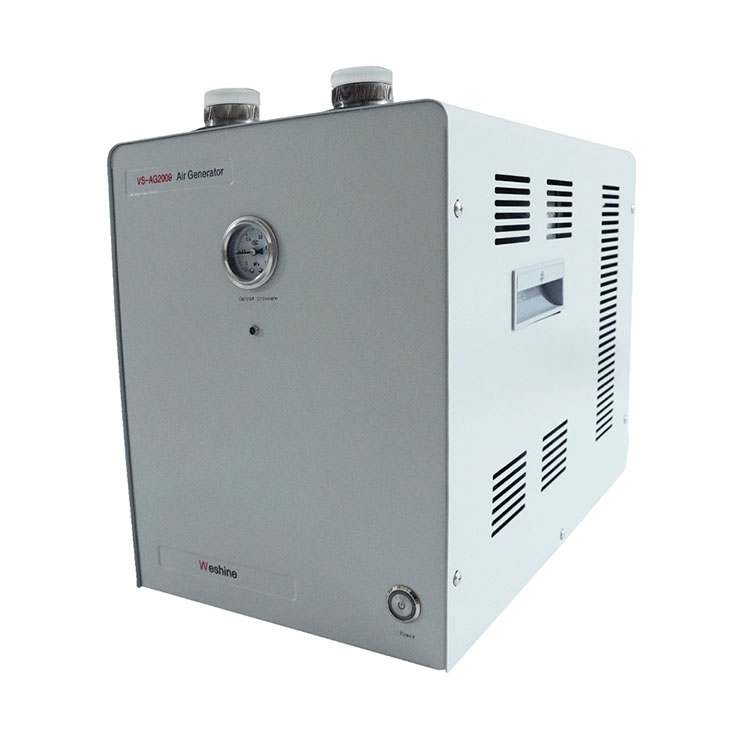

Gas Chromatography Instrument mainly analysis the gases components from the transformer insulating oil.Gas Chromatography Instrument works with the Air Generator,Hydrogen Generator, and Oscillator.

The Oscillator shocks and heats up the oil sample to get the gas from the oil. And then inject the gas sample into the Gas Chromatography Instrument. Before that,we should use the Air Generator and Hydrogen Generator to fire the FID1 and FID2.The Gas Chromatography Instrument will analysis the gas sample automatically, and you will see the gases components waves on the software on PC.The test report can be printed by the printer from the Gas Chromatography Instrument.

Product details:

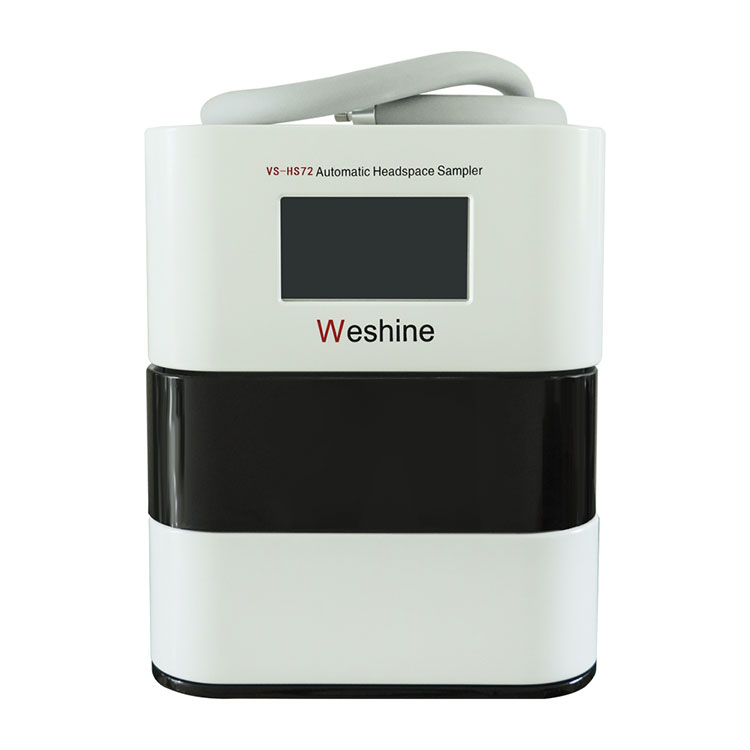

For Headspace Sampler:

The Autosampler can extracts the gases from the insulating oils, and transmit the gases by carrier gas to the Gas Chromatography Instrument Columns.It has the function of the heating and shocking,instead of the manual oscillator.

Details of the Vials

Number of vials	27/72
Vial Material	Neutral Glass
Vial volume	20ml
Vial Septum	PTFE coated with butene rubber PTFE coated with silicone rubber
Vial Aluminum Cap	Aluminum

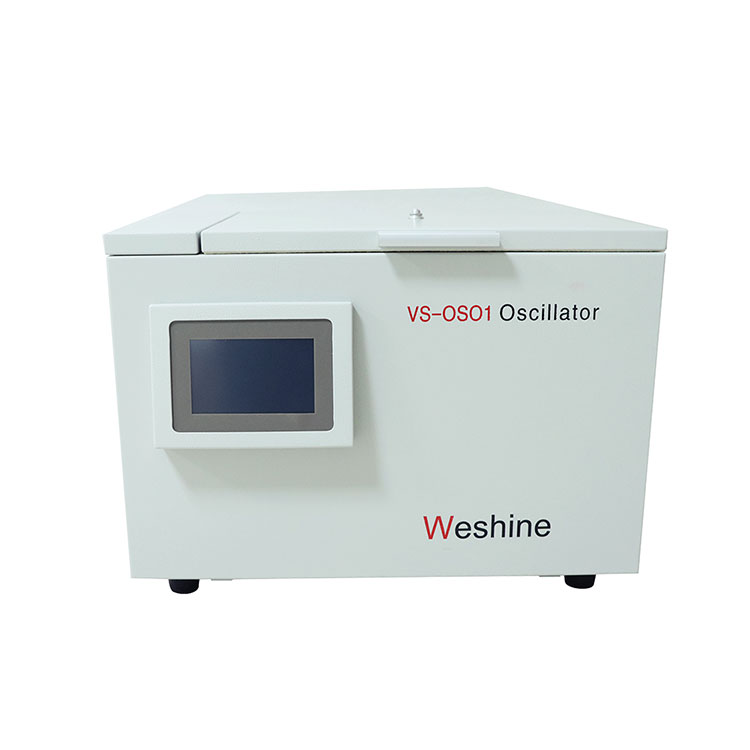

For Oscillator:

The Oscillator heats and shocks the transformer oil to extract the gases from the transformer insulating oils automatically. The temperature and times can be set. Put the 40ml oils into the 100ml-injector, and then put 8 injectors at max into the oscillator to start the extraction works.
