Contact Resistance Meter

Weshine® invented Contact Resistance Meter for circuit breaker test are advanced standalone or PC-controlled instruments for circuit breaker maintenance. Typical application areas of Weshine®'s Contact Resistance Meter for circuit breaker test are medium and high voltage substations at electric power generation, transmission, and factories of switchgear. Also, industrial environments and electric power distribution are suitable application areas for Weshine® Contact Resistance Meter for circuit breaker test. Weshine® Contact Resistance Meter for circuit breaker test with high quality and accuracy, invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Contact Resistance Meter for circuit breaker test from Weshine!

Send Inquiry

Product Description

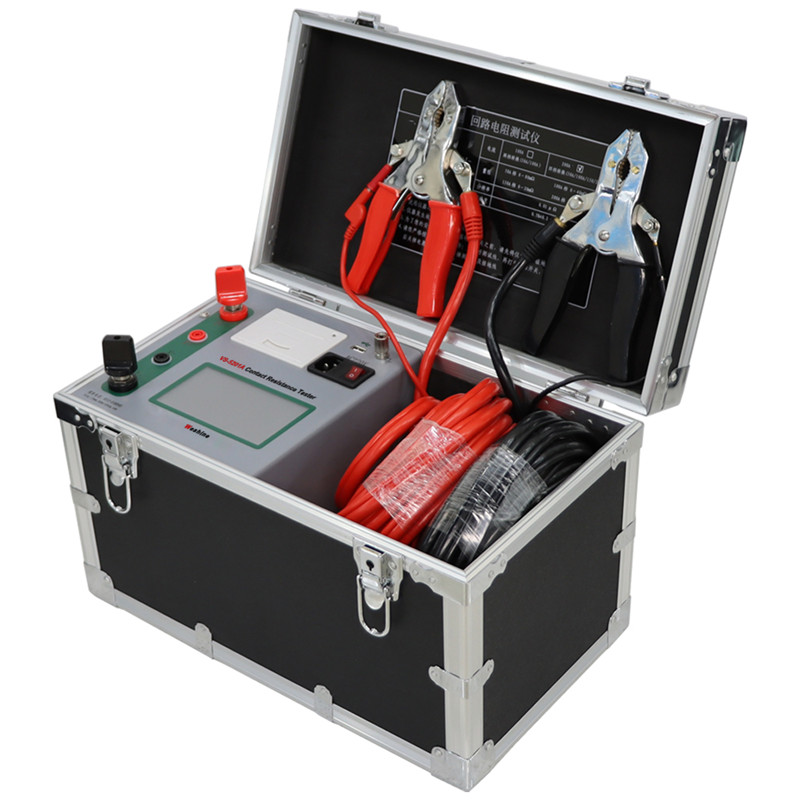

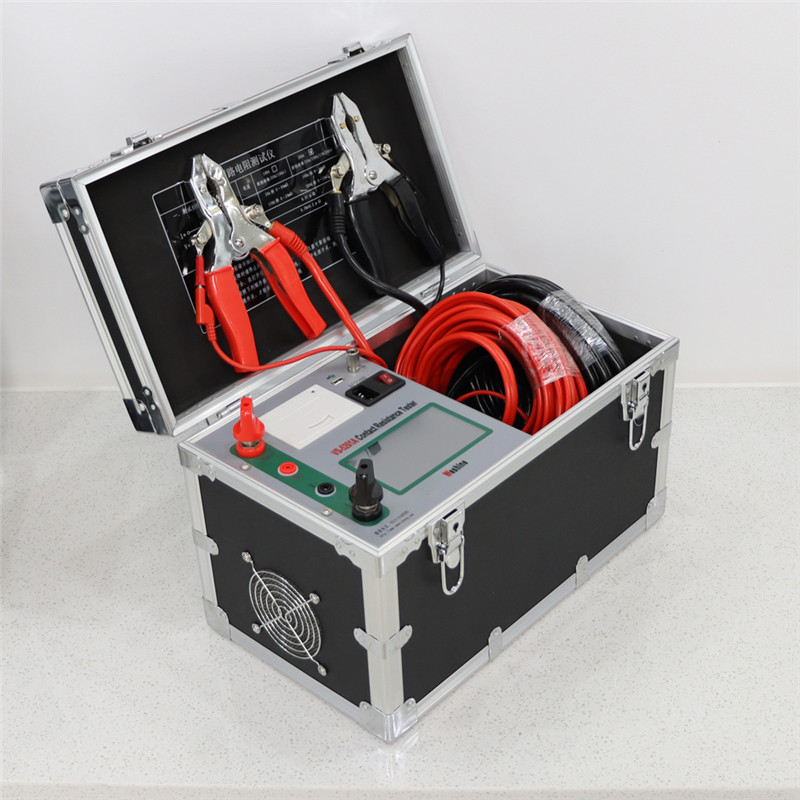

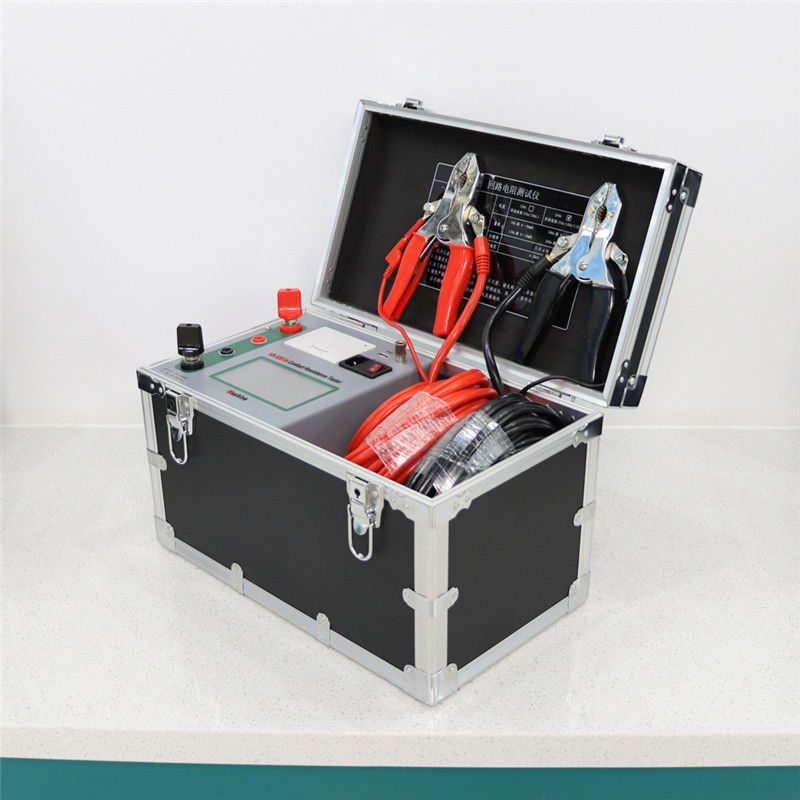

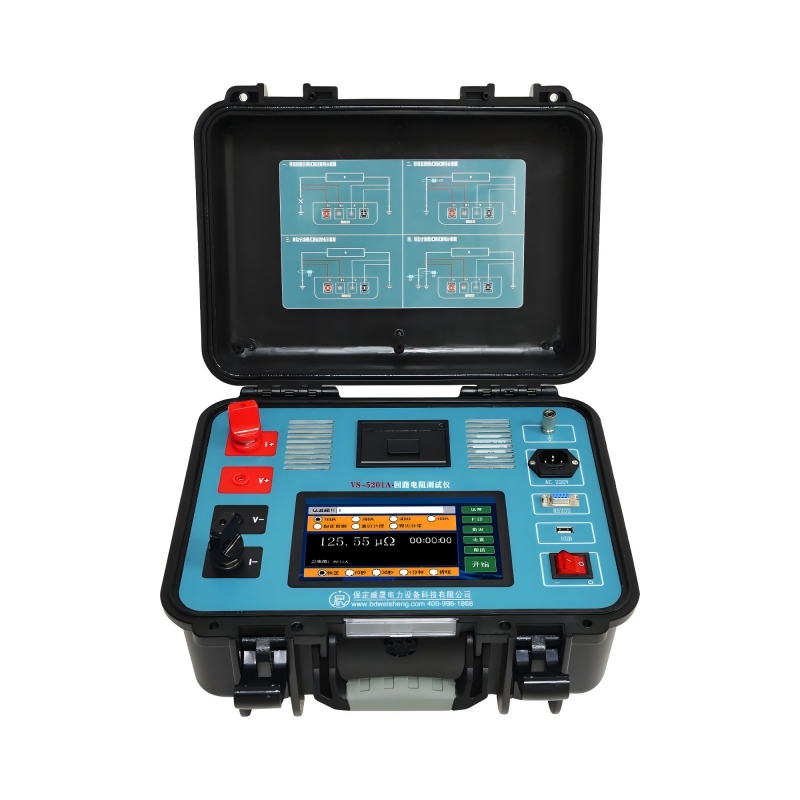

Contact Resistance Meter for circuit breaker test

Product Introduction:

When a high current passes through a pair of mechanically independent metallic contacts, the resistance must be as low as possible. An increase in resistance can lead to additional degradation, as I2R losses will cause local heating of the contact surfaces. Weshine® invented range of Contact Resistance Meter for circuit breaker test measure both steady state and dynamic low resistance values. With test currents up to 600 A available, logging and trending are also available on some models. Weshine® ensure that Contact Resistance Meter for circuit breaker test are portable, making them suitable for field measurements. Weshine® Contact Resistance Meters’ portability makes them ideal for a vast range of resistance testing across the entire LV, MV HV and EHV spectrum.

Weshine® 5201 Series is designed to test the Contact Resistance Meter of circuit breaker contacts, bus-bar joints, contact elements in bus-bars and other high-current links. The testers have been designed with safety, ease of use and versatility in mind.

Weshine® Contact Resistance Meter for circuit breaker test can be used anywhere to measure a low resistance value with high accuracy. It conducts true DC ripple free current testing of bus bars, circuit breakers, fuses, etc.

PRODUCT INFORMATION
Product Name	Contact Resistance Meter for circuit breaker test
Model Number	VS-5201	Current Output	50 A, 100 A;
Test Range	0 to 80 mΩ	Certificates	CE; EMC; LVD; ISO; IEC;
MEASUREMENT OBJECTS	* circuit breakers * disconnecting switches * busbar connections * knife-contact fuses * safety devices ……
Dimensions	360 x 235 x 270 mm	Weight	8 kg

Quality Certificates

We always believe that all the success of our company is directly related to the quality of the products we provide. Contact Resistance Meter for circuit breaker test meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
