Circuit Breaker Test Set

Weshine® invented Circuit Breaker Analyzer for Circuit Breaker Test Set are advanced standalone or PC-controlled instruments for circuit breaker maintenance. Typical application areas of Weshine®'s Circuit Breaker Analyzer for Circuit Breaker Test Set are medium and high voltage substations at electric power generation, transmission, and factories of switchgear. Also, industrial environments and electric power distribution are suitable application areas for these Circuit Breaker Analyzer for Circuit Breaker Test Set. Channels provide measuring the displacement of the circuit breaker moving parts, contact wipe, over-travel, rebound, damping time, and average velocity. Even more, the VS-5308C Circuit Breaker Analyzer for Circuit Breaker Test Set optionally has a built-in micro-ohmmeter. Hence, it provides the main circuit resistance measurement (contact resistance measurement). Weshine® Circuit Breaker Analyzer for Circuit Breaker Test Set with high quality and accuracy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Circuit Breaker Analyzer for Circuit Breaker Test Set from Weshine®!

Send Inquiry

Product Description

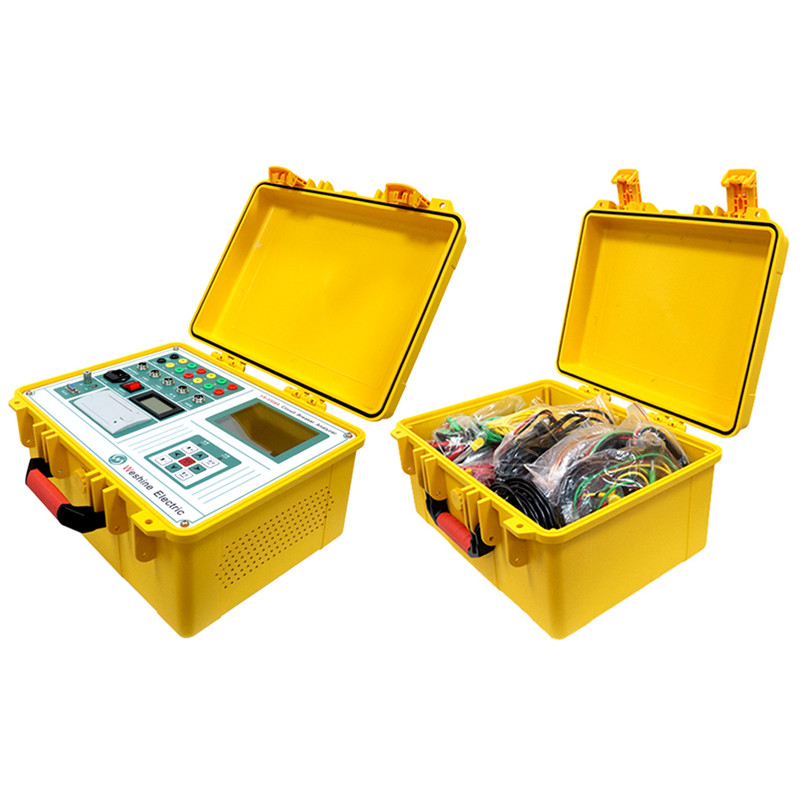

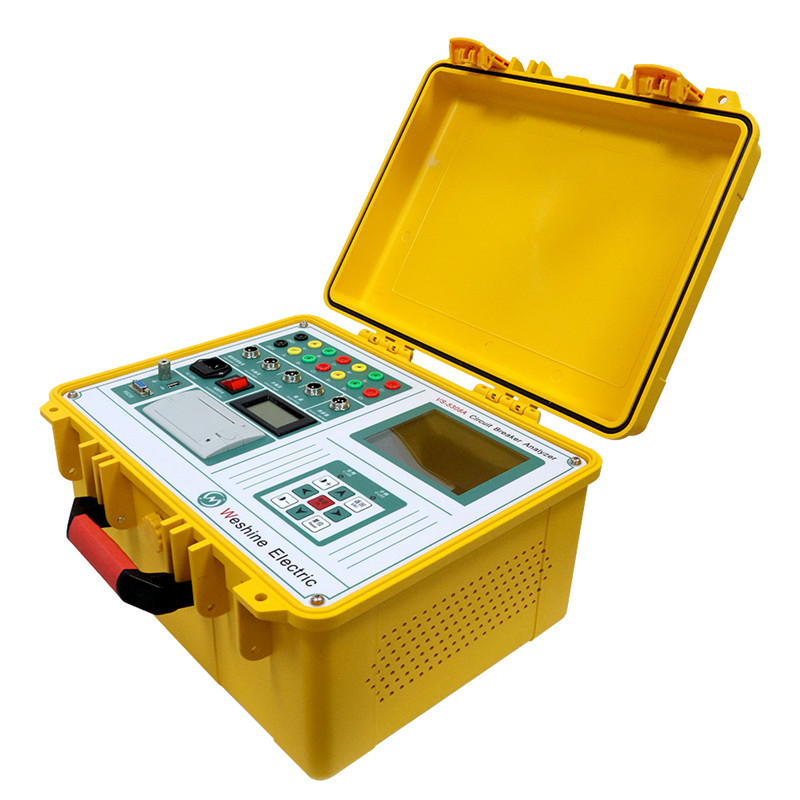

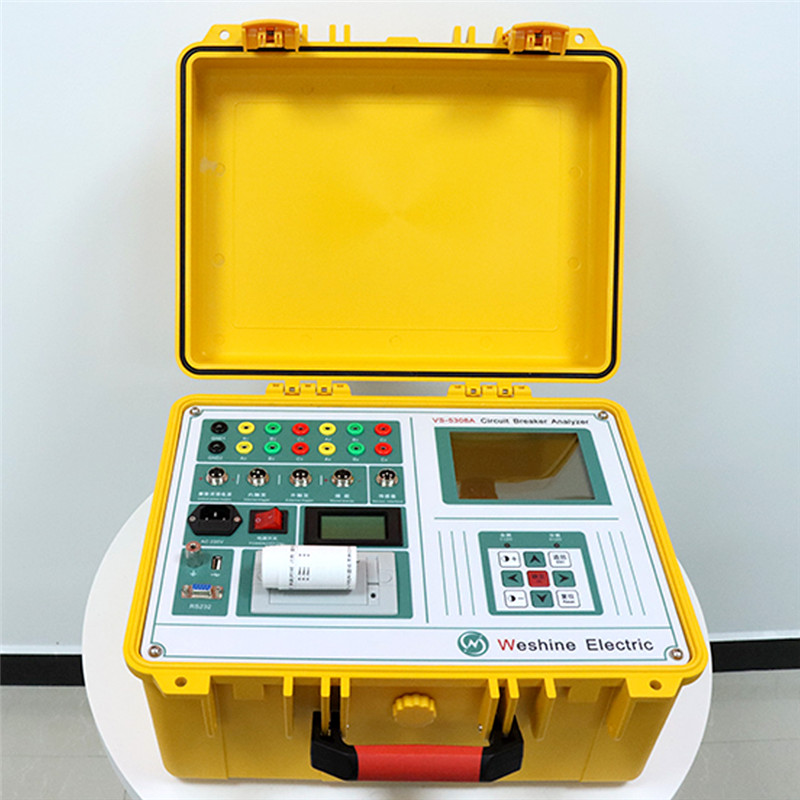

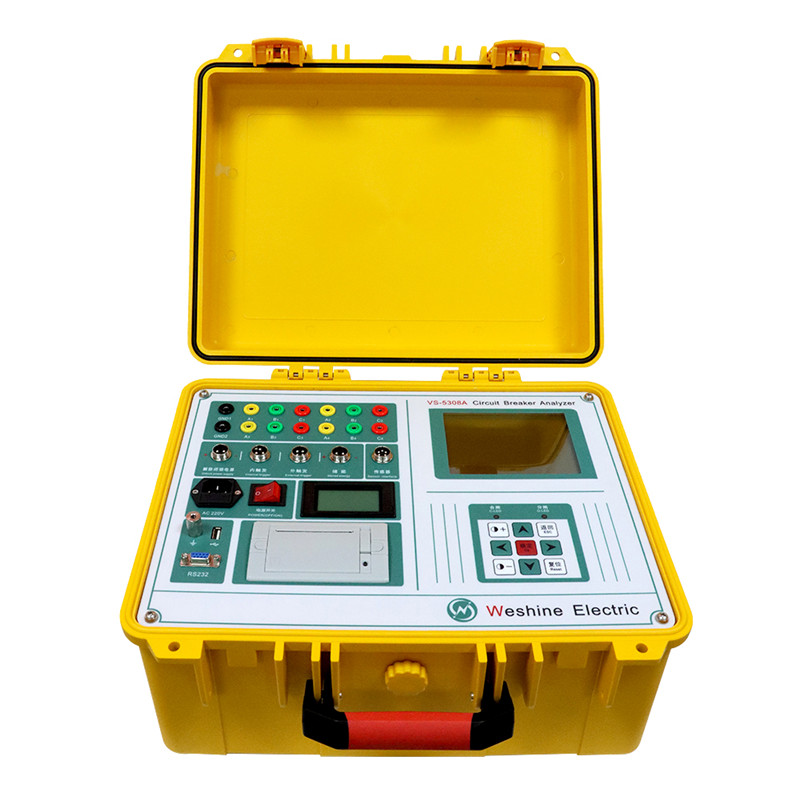

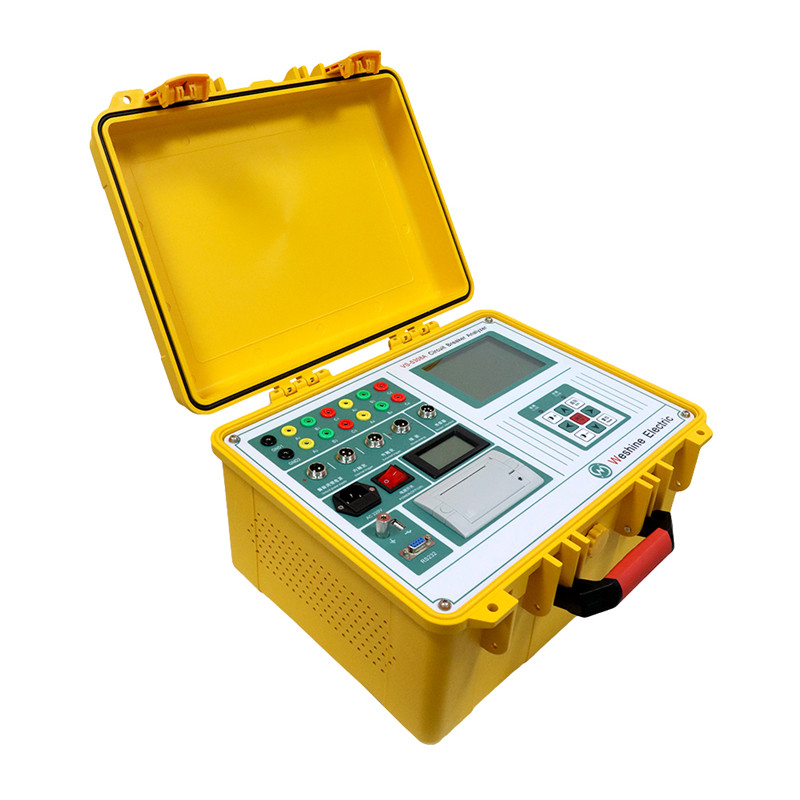

Circuit Breaker Analyzer for Circuit Breaker Test Set

Product Introduction:

Weshine® Circuit Breaker Analyzer for Circuit Breaker Test Set, the two pieces design allows the operator to use the unit at a safe distance. The control unit is used to operate the high voltage transformer. The unit consists of a variac, current/ voltage display instruments, a timer for the test duration and a safety circuit. The low voltage winding can be continuously excited from zero to the maximum value so that a certain output is available for a pre-determined period. The operating duration depends on the application, ranging from a few minutes to continuous operation.

Circuit Breaker Analyzer for Circuit Breaker Test Set series, input voltage is 200V or 400V, which is connected to the matching control box (table), and the input voltage is adjusted to the primary winding (low voltage) of the test transformer through the auto voltage regulator. Using the principle of electromagnetic induction, the secondary winding (high voltage) press Its ratio to the number of turns of the primary winding can obtain the same multiple of the output high voltage, which can be continuously adjusted from zero volts to the highest rated value. In the DC withstand voltage and leakage current test, as long as the high-voltage silicon stack is screwed on the high-voltage output end, the DC high voltage can be obtained, and its amplitude is 1.4 times the power frequency high voltage value.

Technical parameters
Product Name	Circuit Breaker Analyzer for Circuit Breaker Test Set
Typical Application	Timing test (O, C, OC, CO & OCO); Breaker Ripples Graphs(timing, travel, vibration, current, voltage) Output spring charging motor voltage;
Optional Functions	* Capable of measuring circuit breakers with graphite contacts (Siemens) — VS-5308X * Capable of measuring SF6 circuit breakers (Dual ground testing) — VS-5308S
Model Number	VS-5308B	Certificates	CE; EMC; LVD; ISO;
Time Range	0 to 16000.0 ms	Speed Range	0 to 20.00 m/s
Stroke Range	0 to 1000.0 mm	Coil Current	Range 20.00A Resolution 0.01A
weight	8 kg	Dimension	420 x 350 x 230 mm

Quality Certificates

We always believe that all the success of our company is directly related to the quality of the products we provide. Circuit Breaker Analyzer for Circuit Breaker Test Set meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
