BDV Value of Transformer Oil1

Weshine® Oil BDV Tester for testing BDV Value of Transformer Oil with CE certificate, high quality and accuracy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Oil BDV Tester from Weshine!

Send Inquiry

Product Description

Weshine®Oil BDV Tester for testing BDV Value of Transformer Oil with CE certificate, high quality and accuracy, Invented and produced according to national standards, complete electric testing solution available. Contact us for more details of Oil BDV Tester from Weshine!

Product Introduction

Oil BDV Tester for Testing BDV Value of Transformer Oil

The Oil BDV Tester, also called Transformer Oil Dielectric Strength Tester or Transformer Oil Breakdown Voltage Tester, made for testing BDV Value of Transformer Oil .

Transformer oil (Insulating oil) in electrical power apparatus serves two primary roles, as an insulator and a coolant. As an insulating liquid, oil’s most important property is a high dielectric strength and as a cooling liquid, a low viscosity is paramount. The principal nemeses of insulating oil are oxidation, contamination (particularly moisture, which tends to lower the dielectric properties of insulating oil), and excessive temperature. These enemies are managed through design, regimented installation processes and prudent operation of the oil-filled power apparatus. At all stages of a power asset’s life, testing must be conducted to evaluate the condition of the insulating oil. In fact, for some assets, it can be argued that the oil is tested more frequently than any other component.

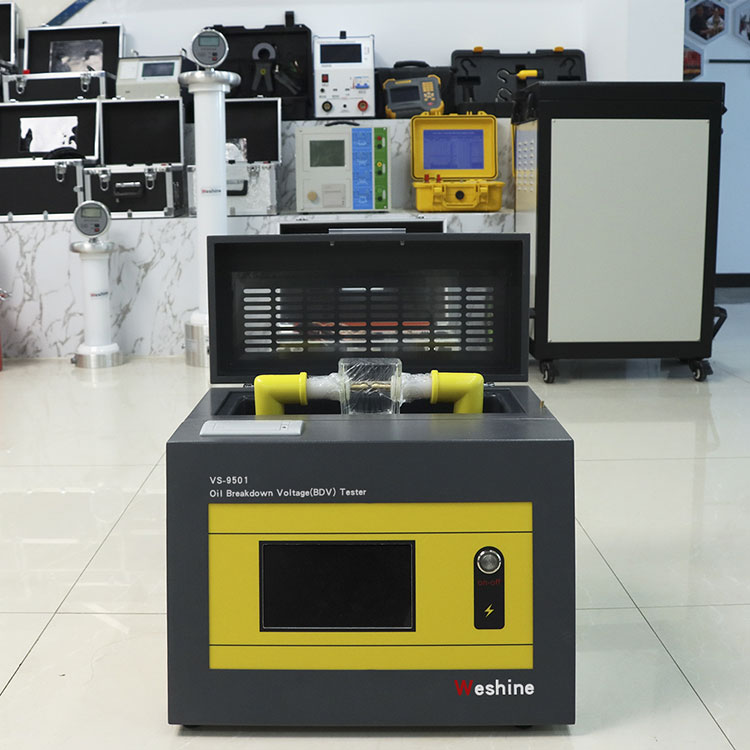

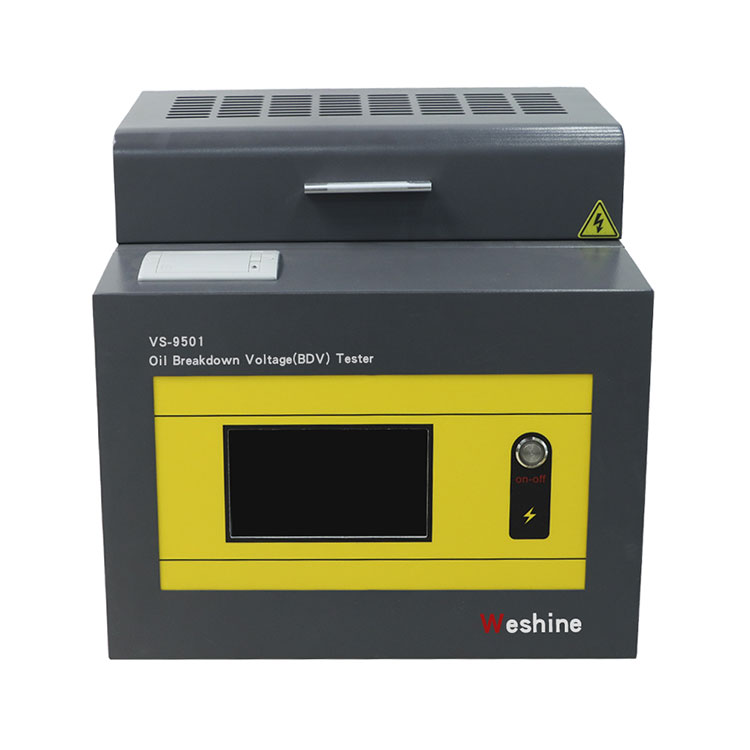

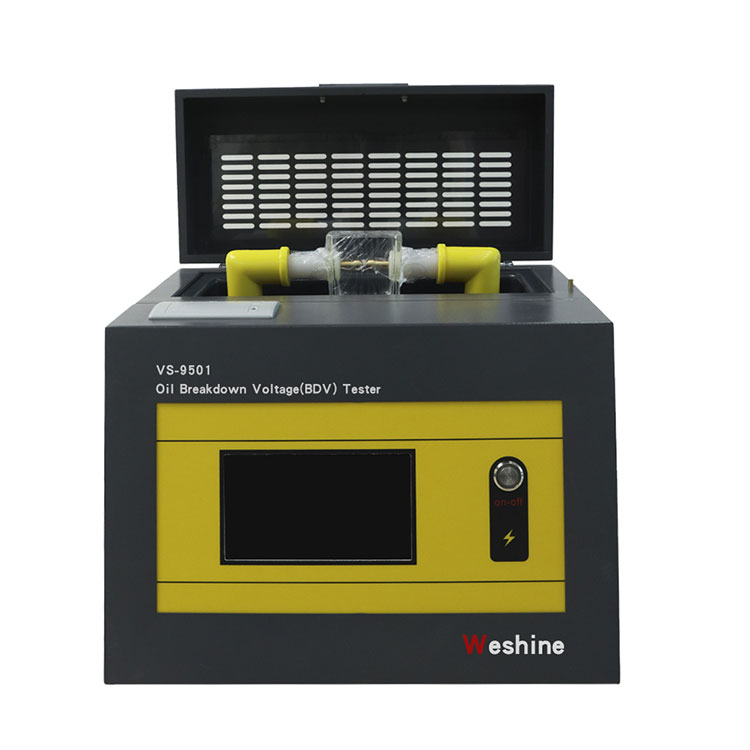

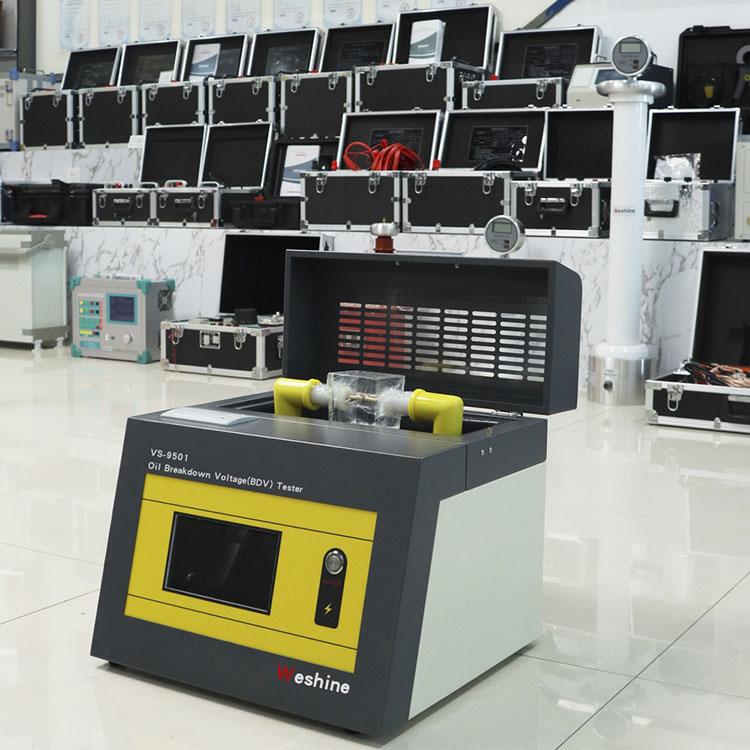

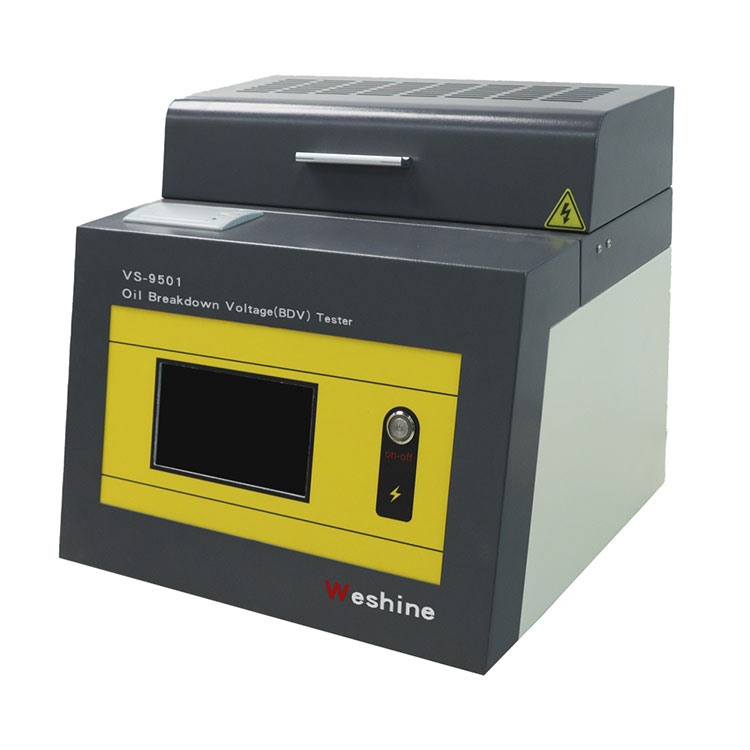

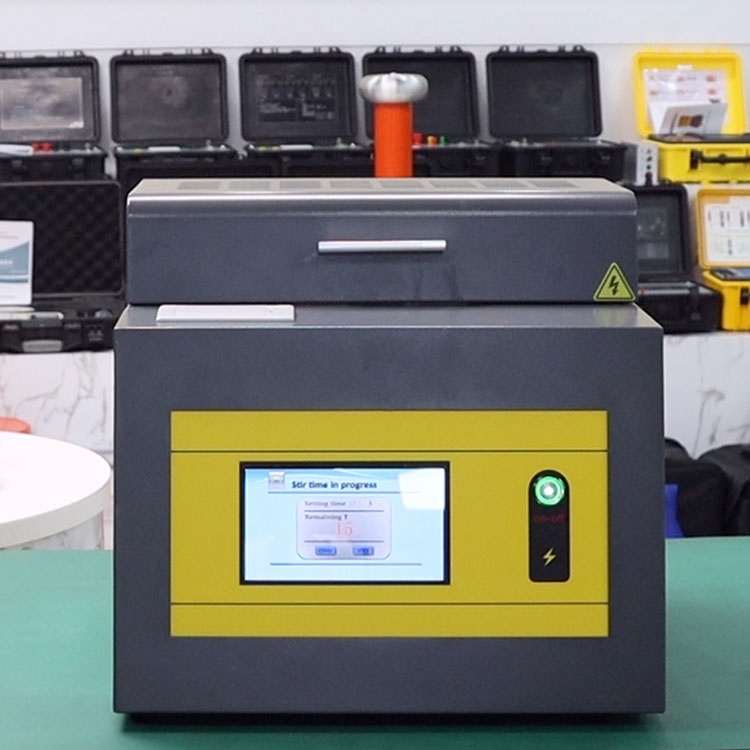

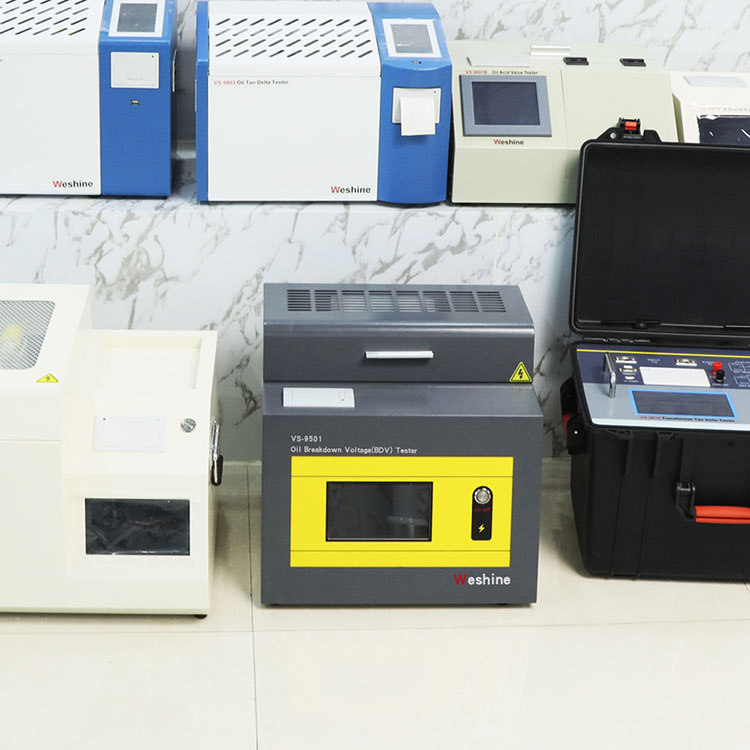

Weshine invent the VS-9501 series is a fully automatic transformer oil BDV test kit designed with advanced technologies to measure the electrical BDV Value of Transformer Oil , which has a quick sensing ability to measure accurate breakdown voltage. The series is compliant with national & international standards for test sequences and also has user friendly customized test sequences. The series comes with a large color touch screen display for easy operations. It is provided with internal memory to store up to 100 tests & an inbuilt thermal printer for on-site report printing. As for safety, our transformer oil testing machine series has an open ground detection feature to avoid damage. The molded oil test vessel is suitable to test minerals, ester & synthetic oils and comes with an adjustable electrode gap setting to conduct tests as per standards.

Weshine®Oil BDV Tester for Testing BDV Value of Transformer Oil Parameter (Specification)

PRODUCT INFORMATION
Product Name	Transformer Oil BDV (Breakdown Voltage) Tester
Model Number	VS-9501C	Test Range	0 ~ 80 kV
Booster Capacity	1.5 kVA	Voltage Raising Speed	0.5 ~ 5 kV/s
Pre-programmed Standards	IEC 60156:1995, GB/T 507-2002, GB/T 507-1986, DL/T 429.9-1991, two customized...
Power Distortion Rate	<1%	Certificates	CE; EMC; LVD; ISO;
Dimensions	320 x 280 x 460 mm	Weight	34.5kg

Selections

Weshine®has 8 years experience specifically for deal with complete range of Electrical Equipment. At present, Weshine®has invented variousOil BDV Testerfor Testing BDV Value of Transformer Oil as shown as form:

	ORDERING INFORMATION FOROIL BDV TESTERFOR TESTING BDV Value of Transformer Oil
Cat. No.	Picture	Test voltage (kV)	Accuracy	Voltage raising speed (kV/s)	Booster capacity (kVA)	No. of test position	Dimension (mm)	Weight (kg)
VS-9501A		0 to 80	±3%	0.5 to 5.0	1.5	1	465 x 385 x 425	42
VS-9501A+		0 to 100	±3%	0.5 to 5.0		1	465 x 385 x 425	42
VS-9501B		0 to 80	±3%	0.5 to 5.0		1	460 x 280 x 320	34.5
VS-9501D		0 to 80	±2%	0.5 to 5.0		1	410 x 380 x 370	36
VS-9501D+		0 to 100	±2%	0.5 to 5.0		1	410 x 380 x 370	36
VS-9501S		0 to 80	±2%	0.5 to 5.0		1	430 x 350 x 370	36
VS-9501S+		0 to 100	±3%	0.5 to 5.0		1	465 x 385 x 425	36
VS-9503A		0 to 80	±2%	0.5 to 5.0		3	650 x 470 x 410	42
VS-9503A+		0 to 100	±2%	0.5 to 5.0		3	650 x 470 x 410	42
VS-9503B		0 to 80	±3%	2.0 to 3.5		3	585 x 390 x 410	42
VS-9503B+		0 to 100	±3%	2.0 to 3.5		3	585 x 390 x 410	42
VS-9506A		0 to 80	±2%	0.5 to 5.0		6	800 x 653 x 715	75.5
VS-9506A+		0 to 100	±2%	0.5 to 5.0		6	800 x 653 x 715	75.5
VS-9506B		0 to 80	±3%	2.0 to 3.5		6	760 x 670 x 780	70
VS-9506B+		0 to 100	±3%	2.0 to 3.5		6	760 x 670 x 780	70

Based on Supply Chain issues: Please contact your preferred Authorized Weshine Distributor for current pricing and lead times.

Quality Certificates

Weshine®always believe that all the success of our company is directly related to the quality of the products we provide. Oil BDV Tester for testing BDV Value of Transformer Oil meet the highest quality requirements specified in ISO9001, ISO14000:14001 guidelines and our strict quality control system.
